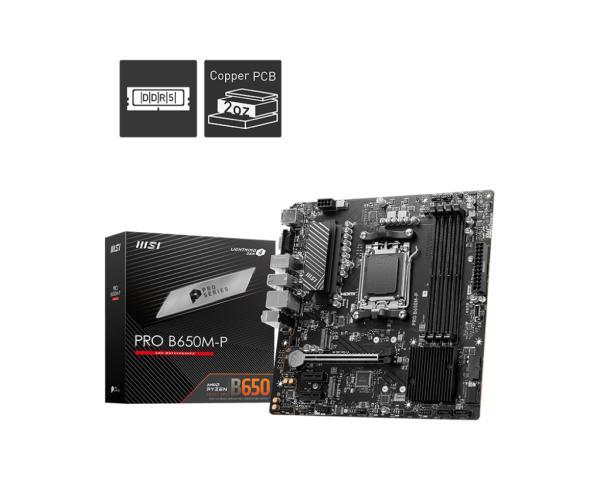

Name: MSI PRO B650M-P AM5 mATX DDR5 Desktop Motherboard
Brand: MSI
SKU: PRO B650M-P
Price: 199 AUD
Availability: InStock

MSI PRO B650M-P AM5 mATX DDR5 Desktop Motherboard

SKU : PRO B650M-P

Brand : MSI

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # MSI | Model # PRO B650M-P

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Features:

Supports AMD Ryzen 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Overview:

Chipset: AMD B650
Memory: upto 192GB (48GB each)
DIMM Slots: 4
Form Factor: ATX
HDMI: Yes
VGA: Yes

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Chipset	AMD B650
CPU Support	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: -1DPC 1R Max speed up to 7200+ MHz -1DPC 2R Max speed up to 6000+ MHz -2DPC 1R Max speed up to 6000+ MHz -2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 1920x1200 60Hz
Expansion Slot	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Raid	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front)
LAN	Realtek 8125BG 2.5G LAN
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED Feature	4x EZ Debug LED
Back Panel Ports	DisplayPort VGA Keyboard / Mouse USB 2.0 2.5G LAN Audio connectors Flash BIOS Button HDMI USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A)
Opreating System	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L)	mATX 243.84mmx243.84mm
