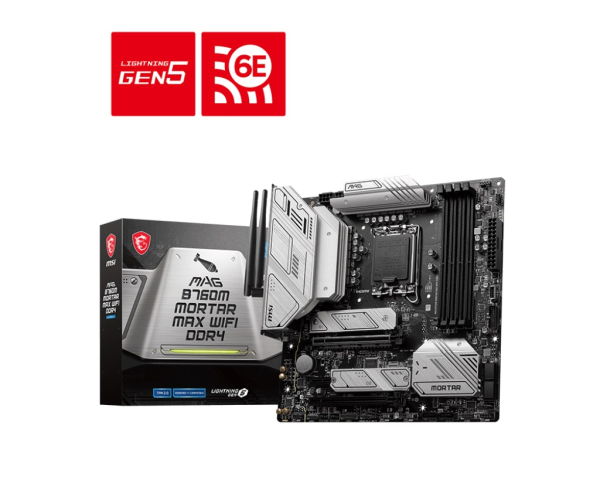

Name: MSI B760M Mortar Max WiFi DDR4 LGA1700 mATX Desktop Motherboard
Brand: MSI
SKU: B760M MORTAR MAX WIFI DDR4
Price: 362 AUD
Availability: InStock

MSI B760M Mortar Max WiFi DDR4 LGA1700 mATX Desktop Motherboard

SKU : B760M MORTAR MAX WIFI DDR4

Brand : MSI

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # MSI | Model # B760M MORTAR MAX WIFI DDR4

The MAG series fights alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Features:

Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 5333+(OC) MHz
Enhanced Power Design- 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
OC Engine- With the clock generator, the OC Engine technology releases the maximum power of CPU.
Lightning Fast Game experience- PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution- Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

Overview:

Chipset: Intel B760
RAM Capacity: upto 128GB (32GB each)
DIMM Slots: 4
Form Factor: mATX
Dimensions: 243.84mmx243.84mm

Manufacturer Warranty: 03 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

General

Chipset

Intel B760

Socket

LGA 1700
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

BIOS

1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language

Unique Features

Gaming Mode
Smart Priority
Game Highlights
Mystic Light
Ambient Link
Extended Heatsink Design
M.2 Shield Frozr
Core Boost
VRM Power Design
EZ M.2 Clips
EZ DEBUG LED
EZ LED Control
Mystic Light Extension (RGB)
Click BIOS 5
CPU Cooler Tuning

Memory

RAM Capacity

upto 128GB (32GB each)

DIMM Slots

RAM Frequency Supports

DDR4 5333(OC) / 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC) Supports non-ECC, un-buffered memory

Onboard Graphics

With HDMI

1x HDMI
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

With DisplayPort

1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz

Wireless Communication

Wi-Fi

Intel Wi-Fi 6E
Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth

5.3

Slots And Ports

Expansion Slots

2x PCI-E x16 slot
1x PCI-E x1 slot
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Internal I/O Connectors

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

Back Panel Connectors

4x USB 2.0 Type-A ports (From B760 chipset)
1x DisplayPort
1x HDMI port
3x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub)
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset)
1x 2.5G LAN (RJ45) port
2x Wi-Fi Antenna connectors (For MAG B760M MORTAR MAX WIFI DDR4 & MAG B760M MORTAR WIFI DDR4?
5x audio jacks
1x Optical S/PDIF Out connector
