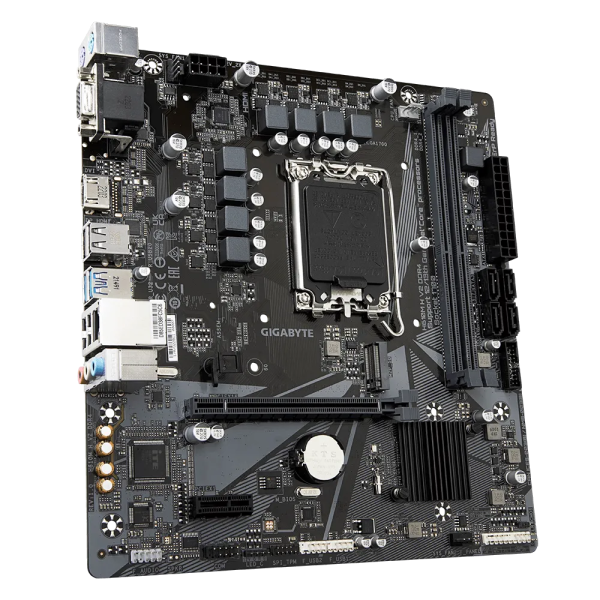

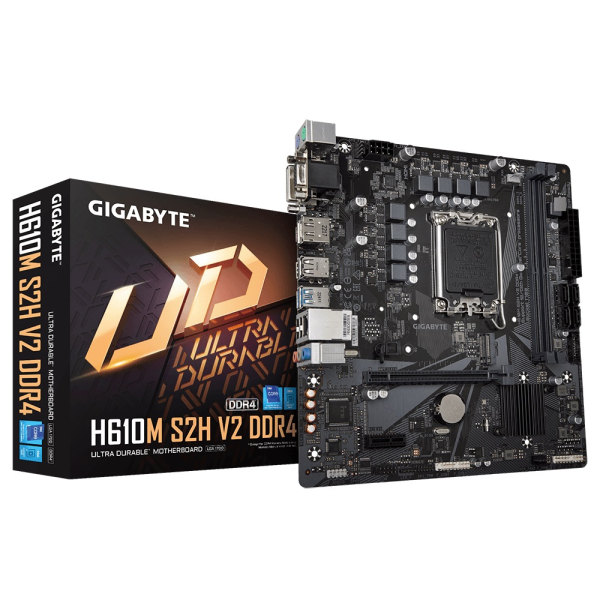

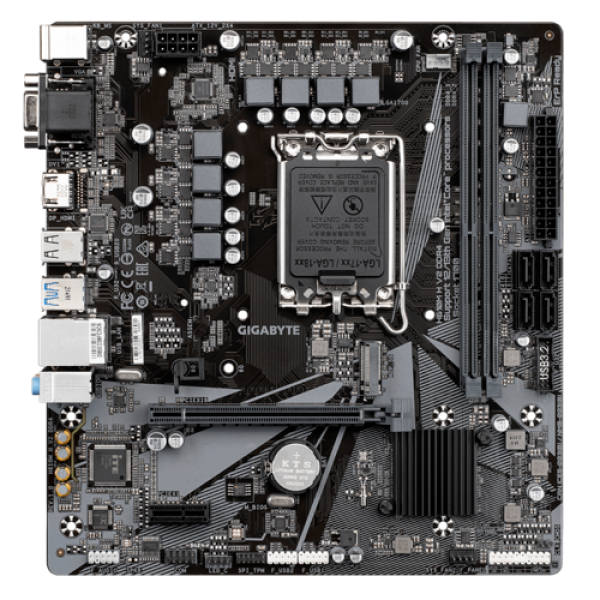

Gigabyte H610M S2H V2 DDR4 LGA 1700 Micro-ATX Motherboard

SKU : H610M S2H V2 DDR4 1.0
Brand : Gigabyte
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Chipset: Intel H610, RAM Capacity: upto 64GB (32GB each), DIMM Slots: 2, OS: Support for Windows 11/10 64-bit, Form Factor: Micro ATX, Warranty: 03 Years, H610M S2H V2 DDR4 1.0.
Ask a question about this product
$159.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Gigabyte | Model # H610M S2H V2 DDR4 1.0



The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.



Features:

  • Supports 13th/12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP



Overview:

  • Chipset: Intel H610
  • RAM Capacity: upto 64GB (32GB each)
  • DIMM Slots: 2
  • OS: Support for Windows 11/10 64-bit
  • Form Factor: Micro ATX



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
Intel H610
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
LGA1700
Support for 13th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Support for Q-Flash
Support for Xpress Install

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 64GB (32GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
2
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

Onboard Graphics

With HDMI
1 x HDMI port
Supporting a maximum resolution of 4096x2160@60 Hz
With DisplayPort
1 x DisplayPort
Supporting a maximum resolution of 4096x2304@60 Hz

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
1 x PCI Express x16 slot
1 x PCI Express x1 slot
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Support for Windows 11/10 64-bit
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
Micro ATX
Dimensions
23.0cm x 21.5cm
