DeepCool AK500 Digital White High-Performance CPU Cooler

Brand : DeepCool
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Heatpipe: Ø6 mmx5 pcs, Fan Speed: 500~1850 RPM±10%, Fan Airflow: 68.99 CFM, Fan Air Pressure: 2.19 mmAq, Fan Airflow (with LSP): 52.24 CFM, Fan Air Pressure (with LSP): 1.2 mmAq, Fan Connector: 4-pin PWM, Bearing Type: Fluid Dynamic Bearing, LED Connector: 3-pin(+5V-D-G) and 9-pin USB 2.0, Warranty: 03 Years, R-AK500-WHADMN-G.
Ask a question about this product

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # DeepCool | Model # R-AK500-WHADMN-G

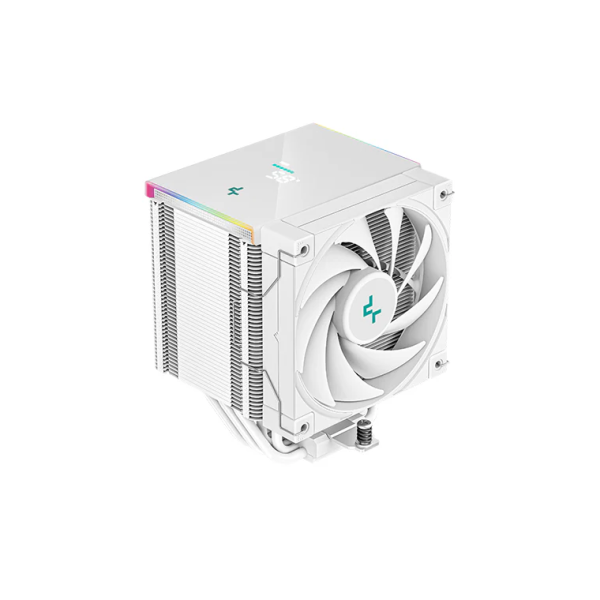

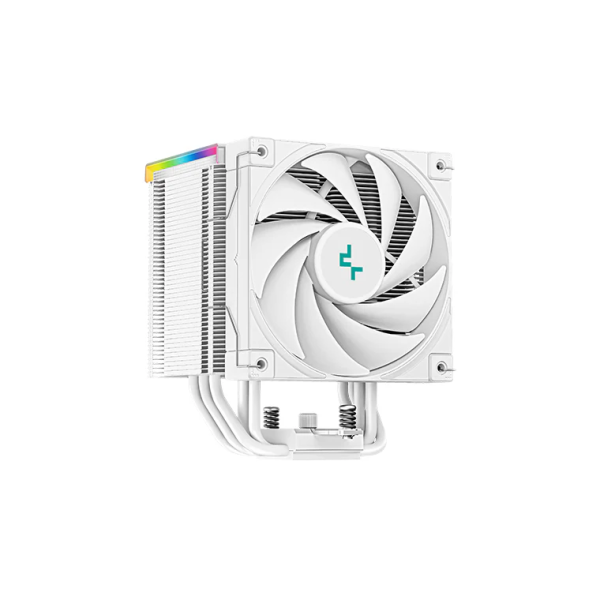

The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK500 DIGITAL WH. Everything you loved about the original AK500 WH, but with a sleek magnetic status display and ARGB LED strips.



  • The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
  • An all-white variant of our highly compatible AK500 CPU cooler featuring an offset direct touch, a five heat pipe wide tower layout, a unique white matrix fin design, and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
  • The exceptional cooling performance of the AK500 DIGITAL WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.

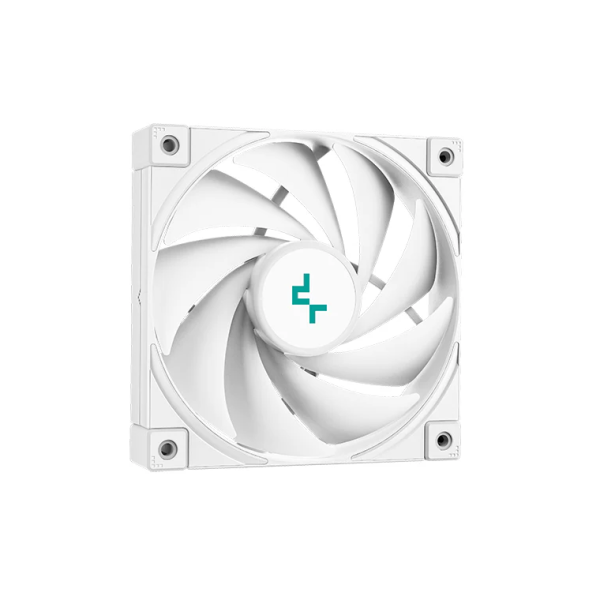

  • Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.

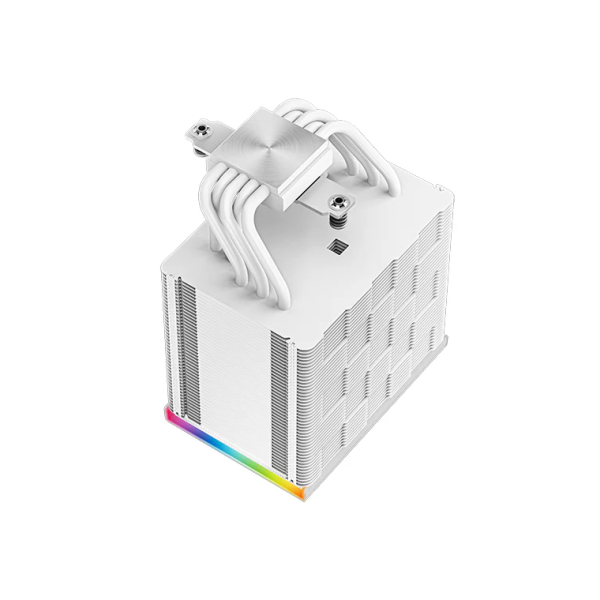

  • The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.

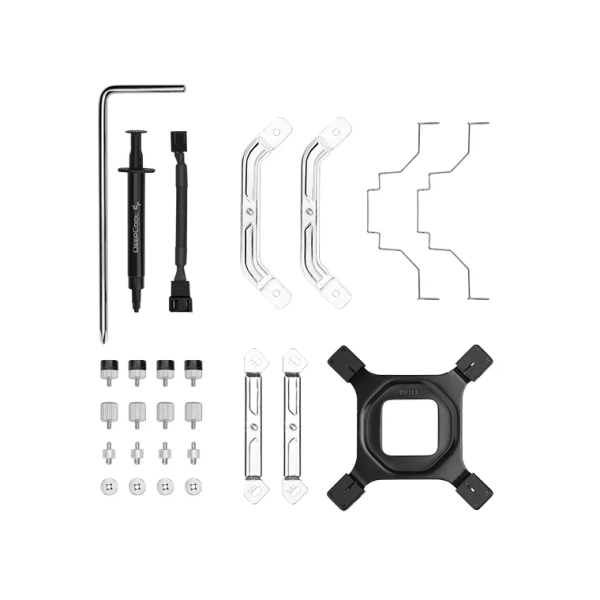

  • The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.



  • Heatpipe: Ø6 mmx5 pcs
  • Fan Speed: 500~1850 RPM±10%
  • Fan Airflow: 68.99 CFM
  • Fan Air Pressure: 2.19 mmAq
  • Fan Airflow (with LSP): 52.24 CFM
  • Fan Air Pressure (with LSP): 1.2 mmAq
  • Fan Connector: 4-pin PWM
  • Bearing Type: Fluid Dynamic Bearing
  • LED Connector: 3-pin(+5V-D-G) and 9-pin USB 2.0


Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Product Dimensions 127x117x160 mm(LxWxH)
Heatsink Dimensions 127x92x156 mm(LxWxH)
Net Weight 1291 g
Heatpipe Ø6 mmx5 pcs
Fan Dimensions 120x120x25 mm(LxWxH)
Fan Speed 500~1850 RPM±10%
Fan Airflow 68.99 CFM
Fan Air Pressure 2.19 mmAq
Fan Noise ≤28 dB(A)
Fan Speed (with LSP) 500~1550 RPM±10%
Fan Airflow (with LSP) 52.24 CFM
Fan Air Pressure (with LSP) 1.2 mmAq
Fan Noise (with LSP) ≤25.9 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.12 A
Fan Power Consumption 1.44 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage 5 VDC
LED Power Consumption 4.5 W
