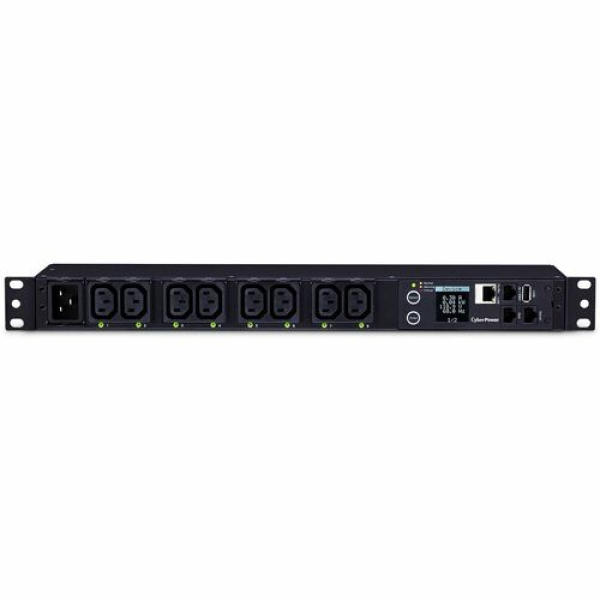

CyberPower Switched Metered-by-Outlet 1U Black 8 AC Outlet 16A PDU

Sku: PDU81005

Availability: Out of Stock

Brand: CyberPower

Category: UPS Accessories

$818.40

This Switched Metered-by-Outlet PDU is designed for precision, control, and performance in high-demand IT environments. Featuring 8 individually controlled IEC C13 outlets, it supports remote outlet management, real-time metering, and advanced environmental monitoring. The color LCD displays vital metrics including input voltage, frequency, current, and network status, and is both hot-swappable and auto-orienting. With a 16A input via IEC C20, and full protocol support (SNMP, HTTPS, SSH, etc.), this PDU integrates seamlessly into enterprise systems. The unit also includes authentication via RADIUS and LDAP.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: CyberPower | Model: PDU81005



This advanced 1U Switched Metered-by-Outlet PDU is built for precise control, monitoring, and energy management in high-performance IT environments. Featuring eight individually controlled IEC C13 outlets and robust remote access capabilities, it enables real-time control and metering with ±1% accuracy. The unit supports global protocols including SNMP, HTTPS, and SSH, and is compatible with RADIUS, LDAP, and Windows Active Directory for secure access. A color LCD with auto-orientation and hot-swappable design provides essential information at a glance, from voltage and power consumption to network and environmental data. With support for environmental sensors, firmware upgrades, and dual mounting options, this PDU is engineered for flexibility and uptime. It operates in harsh conditions up to 60°C and 95% humidity, backed by CE, UL, and RoHS compliance. Perfect for mission-critical server racks requiring high availability, detailed energy tracking, and secure remote outlet control.



Key Features:



  • Switched Metered-by-Outlet with 8 x IEC C13 Outlets
  • Individual Remote Outlet Control with ±1% Metering Accuracy
  • Color LCD with Auto Orientation and Hot-Swappable Module
  • Advanced Protocol Support: SNMP, HTTPS, SSH, Syslog, etc.
  • Authentication via RADIUS, LDAP, Windows AD
  • Steel 1U Rackmount Design (Horizontal/Vertical Mounting)
  • Supports Environmental Sensors & Firmware Upgrades
  • 10 ft (3.05m) Power Cord with IEC C20 Input Connector
  • Wide Operating Range: 0–60°C, 0–95% Humidity, up to 3,500m Elevation
  • Certifications: CE, FCC Class A, UL60950/62368, RoHS Compliant

Type Switched Metered-by-Outlet
Phase Single Phase
Nominal Input Voltage (Vac) 100 ~ 240
Input Frequency (Hz) 50 / 60
Maximum Input Current (A) 16
Input Connector Type IEC C20 x 1
Power Cord Length (ft.) 10
Power Cord Length (m.) 3.05
Output Voltage (V) Depends on Input
Idle Power Consumption (W) < 5
Outlets - # of Bank(s) 1
Outlet(s) - Total 8
Outlet(s) - Front 8
Outlet Type IEC C13 x 8
Remote Individual Outlet Control Yes
LCD Information Display Input Voltage, Input Frequency, Current Level, Power Consumption, Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
Color LCD Yes
Hot-swappable LCD Module Yes
Auto LCD Orientation Yes
LCD Setting & Control Outlet Control, LCD Settings, Reset / Reboot
LED Indicators PDU Status, Tx/Rx, Link, Outlet
Metering Accuracy ± 1%
A-type USB Port Yes
Connectivity Port RJ45, RJ45 (for Serial), RJ45 (for Environmental Sensor/Daisy Chain (In)), RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported Yes
User-upgradeable Firmware Yes
Power Management Software PowerPanel Business, PowerPanel Enterprise
Supported Protocols IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
Authentication RADIUS, LDAP, LDAPS, Windows AD
Installed Rack Height (U) 1
Form Factor 1U Vertical Rackmount, 1U Horizontal Rackmount
Enclosure Construction Steel
Color Black
Cord Retention Tray Yes
IEC Receptacle Locking Yes
External Site Ground Pin Yes
Adjustable Mounting Brackets 2 Set (L-short, L-long)
Dimensions (WxHxD) (in.) 17.05 x 1.75 x 4.41
Dimensions (WxHxD) (mm.) 433 x 44 x 112
Weight (lbs.) 4.6
Weight (kg.) 2.1
Dimensions (WxHxD) (in.) 19.68 x 2.56 x 9.84
Dimensions (WxHxD) (mm.) 500 x 65 x 250
Weight (lbs.) 8.6
Weight (kg.) 3.9
High Temperature Operation Yes
Operating Temperature (°F) 32 ~ 140
Operating Temperature (°C) 0 ~ 60
Operating Relative Humidity (Non-condensing) (%) 0 ~ 95
Operating Elevation (feet/meters) 0-11,483 feet (0-3,500 meters)
Certifications CE, FCC Class A, UL60950, UL62368, EN 55032 Class A
RoHS Yes
