This advanced rackmount power transfer switch features IEC C19 and C13 outlet configurations, with a typical transfer time of under 4ms, ensuring uninterrupted power flow. Designed for flexibility, it supports cascading with IEC 16A output and includes multiple management cables for easy integration. Operating at 200–240V with a 16A input current, it’s compatible with various UPS setups. With multi-position mounting options and a durable metal enclosure, it fits both vertical and horizontal rack configurations. Visual indicators show real-time power status, while retaining clips ensure secure connections.
We Accept
Manufacture: ION | Model: F-MBP16

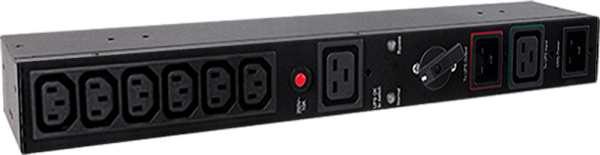

Designed for seamless power transfer and system reliability, this advanced rackmount Maintenance Bypass Panel (MBP) is an essential addition for critical UPS setups. With support for cascading and a wide input voltage range of 200–240 Vac, it ensures consistent operation during maintenance or service scenarios. This MBP features IEC C19 and C13 outlets, with a transfer time of less than 4ms for rapid switchover between utility and UPS power. It includes multiple IEC cable options, versatile installation methods (vertical or horizontal rackmount), and robust metal construction with black finish. LED indicators clearly display status—green for normal, red for bypass—while retaining clips and rackmount ears ensure secure installation. Built to support high-performance UPS systems, this unit also meets CE certifications and operates in a wide temperature and humidity range. It’s designed to function at altitudes up to 10,000 feet, with durable construction suited for long-term reliability. Backed by a 3-year advanced replacement warranty, this MBP provides convenience, safety, and continuous uptime in demanding environments.
| Outlet Type | IEC C19 x 1, IEC C13 x 6 |
|---|---|
| Typical Transfer Time | < 4ms |
| Cascading | Yes, IEC 16A Output Socket |
| Input Voltage Range | 200 ~ 240 Vac |
| Rated Input Current | 16A |
| MBP Socket to Utility Power | IEC C20 |
| MBP Socket to UPS Power Input | IEC C19 |
| MBP Socket to UPS Outlet | IEC C20 |
| LED Indicators | Normal Status (Green Color), Bypass Status (Red Color) |
| Management Cable | 2 x IEC C20/C19 (1.8m) Power Cord 1 x IEC C20/C13 (1.8m) Power Cord 1 x IEC C14/C19 (1.8m) Power Cord |
| Form Factor | >1U Rackmount |
| Enclosure Construction | Metal |
| Color | Black |
| Installation | Multi-Position Mountings, Vertical Rackmount, Horizontal Rackmount |
| Installation Attached to Rack/Tower UPSs | Yes |
| Retaining Clips | Retaining Clips on the IEC Input and Output Sockets |
| Rackmount Ears | Yes |
| Dimensions (WxHxD) | 433 x 51 x 76mm |
| Weight | 1.3kg |
| Dimensions (WxHxD) | 245 x 66 x 500mm |
| Weight | 3.5kg |
| Operating Temperature | 0 ~ 40 °C |
| Operating Relative Humidity (Non-condensing) | 0 ~ 90% |
| Operating Elevation | 0-10,000 feet (0-3,000 meters) |
| Storage Temperature | -15 ~ 45 °C |
| Storage Relative Humidity (Non-condensing) | 0 ~ 95% |
| Storage Elevation | 0-50,000 feet (0-15,000 meters) |
| Certifications | CE |
| Warranty | 3-year advanced replacement warranty* |
