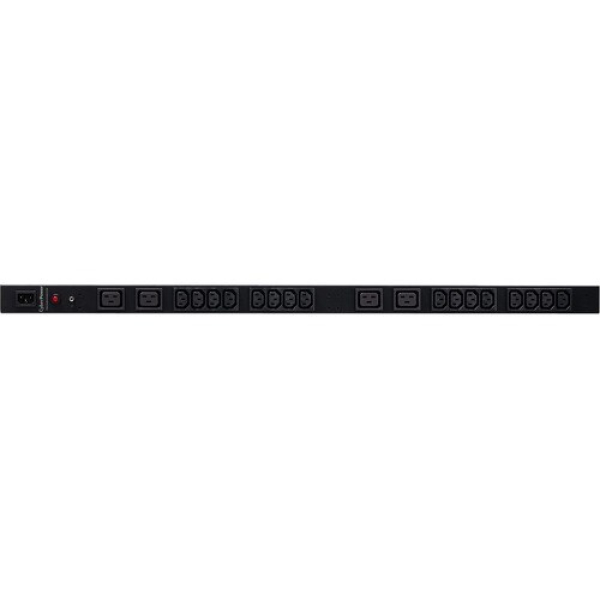

CyberPower Basic 0U Vertical 20-Outlet 10A PDU Black

Sku: PDU10BVHVIEC20F

Availability: In Stock

Brand: CyberPower

Category: UPS Accessories

$228.80

This 0U metal-constructed Rackmount PDU is a reliable and space-efficient power distribution unit, ideal for data centers, server rooms, and network closets. Featuring 20 front-facing outlets (16 x IEC C13 and 4 x IEC C19), it supports a nominal output voltage range of 200–230V with a straight IEC-320 C14 input plug and a 10A circuit breaker (derated to 8A). The unit includes a 10-ft (3.0 m) cord and is designed for horizontal or vertical wall or under-counter mounting, offering maximum installation flexibility.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: CyberPower | Model: PDU10BVHVIEC20F



The 0U Rackmount PDU is a reliable and space-efficient power distribution solution, engineered for high-density IT environments. Designed for both horizontal and vertical installations, it supports a total of 20 outlets—comprising 16 IEC-320 C13 and 4 C19 types—on the front panel for easy access. Its robust metal construction ensures durability, while integrated overload protection and a derated 10A input current safeguard connected equipment. This PDU operates across a wide temperature range and supports elevation and humidity variations, making it ideal for server rooms, data centers, and network closets. With a straight IEC-320 C14 input plug, cord retention tray, and external site ground pin, it combines safety and convenience. Its compact profile and versatile mounting options make it an excellent choice for structured power management in professional IT environments.



Key Features:



  • 0U rackmount design with 20 front-facing outlets (16 x C13, 4 x C19)
  • Straight IEC-320 C14 input plug with 10 ft (3.0 m) cord
  • Nominal output voltage of 200–230 VAC
  • Overload protection rated at 10A (derated to 8A)
  • Horizontal or vertical wall and surface mounting options
  • Durable metal construction with black finish
  • Includes 3 sets of adjustable mounting brackets
  • Cord retention tray and external site ground pin for added safety
  • Wide operating temperature (0–35°C) and humidity range (0–95%)
  • UL60950_1 certified and RoHS compliant with limited lifetime warranty

Cord Length 10 ft (3.0 m)
Input Frequency Range 50 Hz – 60 Hz
Input Plug Type IEC-320 C14
Maximum Input Current 10A (Derated to 8A)
Plug Style Straight
Nominal Output Voltage 200 – 230 VAC
Outlet Type 4 – IEC-320 C19, 16 – IEC-320 C13
Outlets – Front 20
Outlets – Rear 0
Outlets – Total 20
Overload Protection 10A
USB Charge Port No
Adjustable Mounting Brackets 3 sets (L-Short, L-Long, Flat)
Color Black
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Form Factors Supported Horizontal or Vertical Wallmount
Racks Horizontal or Vertical Mount in a Variety of Other Surface Types
Material of Construction Metal
Rack Height 0U
Style Rackmount, Under-Counter
Physical Dimensions – (WxHxD) (cm) 4.45 x 91.44 x 3.81 cm
Physical Dimensions – (WxHxD) (in) 1.75 x 36 x 1.5 in
Physical Dimensions – (WxHxD) (mm) 44 x 914 x 38 mm
Physical Weight (kg) 1.95
Physical Weight (lb) 4.3
Operating Elevation 0 – 10,000 ft (0 – 3,048 m)
Operating Relative Humidity 0 – 95 % (non-condensing)
Operating Temperature 32 – 95 °F (0 – 35 °C)
Storage Elevation 0 – 50,000 ft (0 – 15,239 m)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Environmental RoHS Compliant
Safety UL60950_1 certified by ETL
Product Warranty Limited Lifetime Warranty
