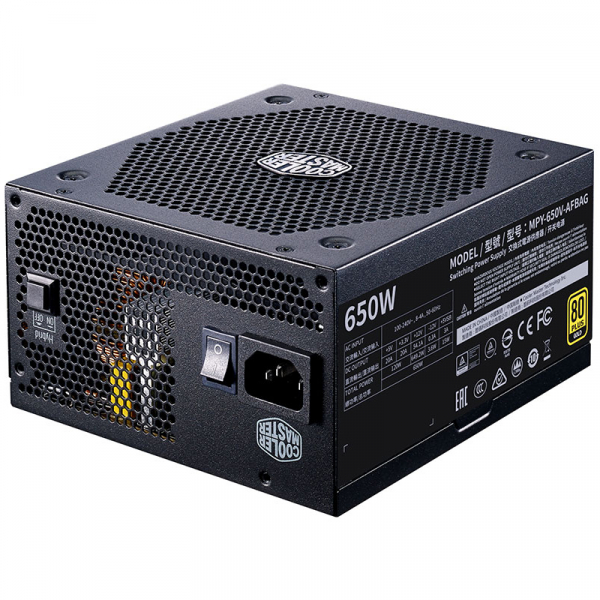

Cooler Master V650 650W V2 80 PLUS Gold Full Modular ATX PSU MPY-650V-AFBAG-AU

Brand : Cooler Master
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Model: MPY-650V-AFBAG, ATX Version: ATX 12V V2.52, PFC: Active PFC, Input Voltage: 100-240V, Input Current: 9-4.5A, Input Frequency: 50-60Hz, Dimensions (L x W x H): 160 x 150 x 86 mm, Fan Size: 135mm, Fan Bearing: FDB, Fan Speed: 1500 RPM, Noise Level @ 20%: 0 dBA, Noise Level @ 50%: 18.3 dBA, Noise Level @ 100%: 32.1 dBA, Efficiency: 90% @ Typical Load, 80 PLUS Rating: 80 PLUS Gold, ErP 2014 Lot 3: Yes, Power Good Signal: 100 - 500 ms, Hold Up Time: 17ms, ATX 24 Pin Connectors: 1, EPS 4+4 Pin Connectors: 1, EPS 8 Pin Connector: 1, SATA Connectors: 8, Peripheral 4 Pin Connectors: 4, PCI-e 6+2 Pin Connectors: 4.
Ask a question about this product

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cooler Master | Model # MPY-650V-AFBAG-AU


The V Gold - v2 series delivers a top-shelf power supply unit in 550, 650, 750, and 850 wattage levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation with a hardware based hybrid switch, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. This series has brought together a number of innovations and improvements from past products to form a PSU that meets all your needs. The 100% Japanese capacitors, half-bridge LLC resonant converter, and DC-DC circuitry work together, resulting in a product that even the pros can respect.



  • The efficiency of your power supply unit is important because it directly affects you system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU.
  • The V Gold - v2 is a professional grade power supply unit made for the normal user. It's more than just the 80 PLUS Gold efficiency rating. It's the performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside.
  • The V Gold - v2 keeps cool under pressure. The fluid dynamic fan bearing creates less friction, making it great for low RPM operations. This technology, combined with a larger 135mm fan, keeps the fan running smoothly and efficiently for longer, keeping the noise level down and extending the lifespan of the PSU.
  • The cooling system isn't just bigger, it's better. And when you aren't pushing your system too hard, the semi-fanless mode will keep the unit completely silent when under 40% maximum load.
  • Cabling is often the most troublesome part of building a PC. The V Gold can't solve all your cabling problems but it's an excellent place to start. With full control and customization of your cables, you don't have to have excess cables cluttering your PC.



  • ATX Version: ATX 12V V2.52
  • PFC: Active PFC
  • Input Voltage: 100-240V
  • Input Current: 9-4.5A
  • Input Frequency: 50-60Hz
  • Dimensions (L x W x H): 160 x 150 x 86 mm
  • Fan Size: 135mm
  • Fan Bearing: FDB
  • Fan Speed: 1500 RPM
  • Noise Level @ 20%: 0 dBA
  • Noise Level @ 50%: 18.3 dBA
  • Noise Level @ 100%: 32.1 dBA


Manufacturer Warranty: 10 Years Limited Warranty

Technical Specifications

Model MPY-650V-AFBAG
ATX Version ATX 12V V2.52
PFC Active PFC
Input Voltage 100-240V
Input Current 9-4.5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 160 x 150 x 86 mm
Fan Size 135mm
Fan Bearing FDB
Fan Speed 1500 RPM
Noise Level @ 50% 18.3 dBA
Noise Level @ 20% 0 dBA
Noise Level @ 100% 32.1 dBA
Efficiency 90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 - 500 ms
Hold Up Time 17ms
MTBF >100,000 Hours
Protections OVP, OPP, SCP, OCP, UVP, OTP
Regulatory CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 8
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 4
Series V Gold Series
80 Plus Gold
Modular Full Modular
Wattage 500 to 750W
