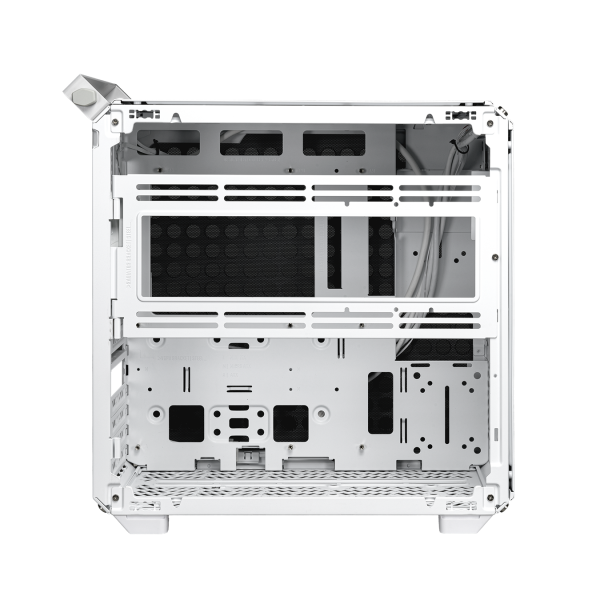

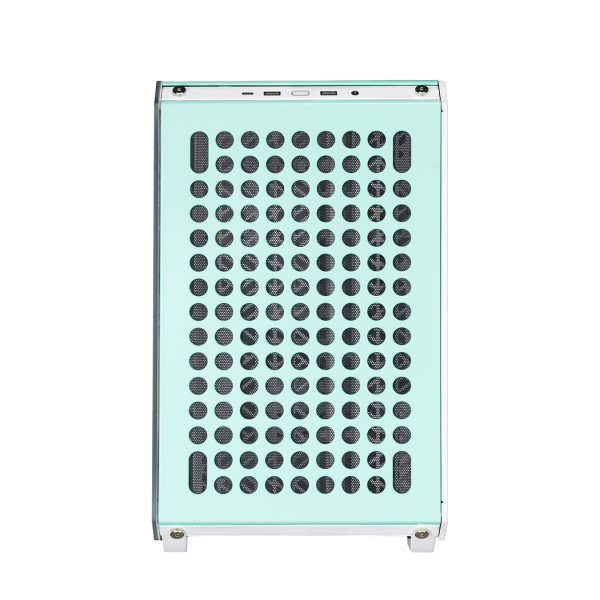

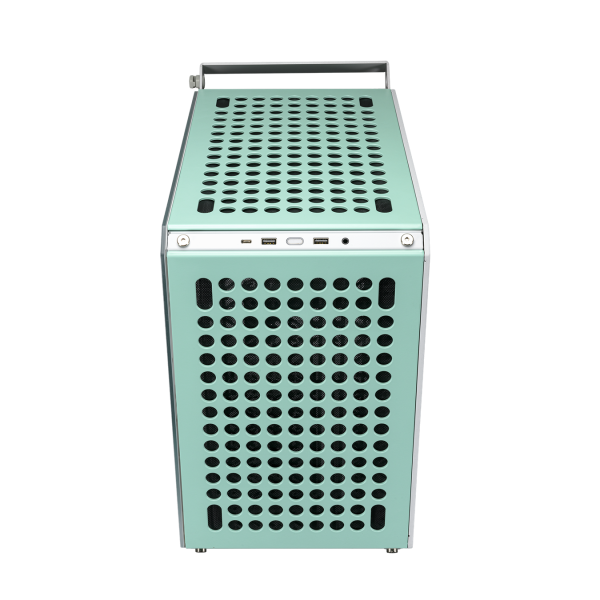

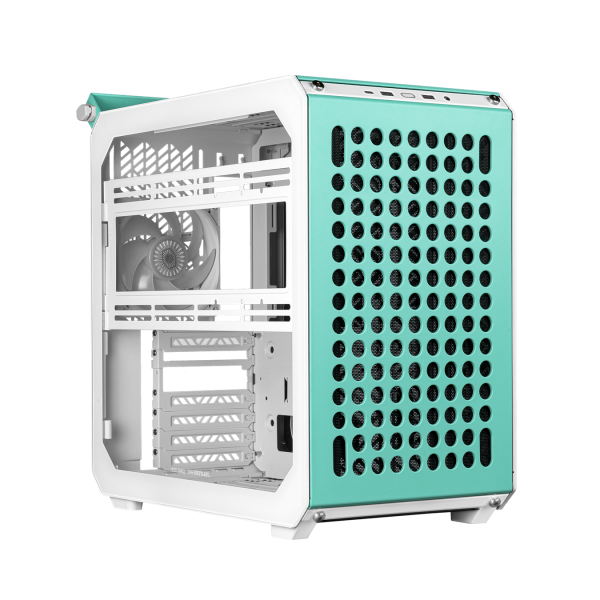

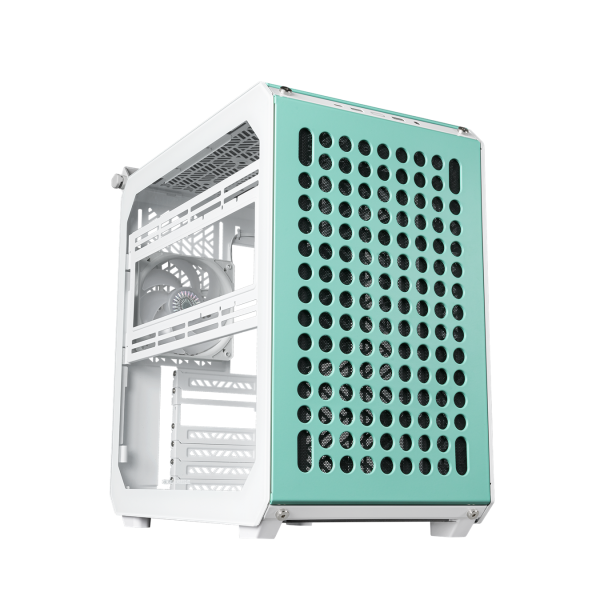

Cooler Master Qube 500 Flatpack Macaron Edition Mid-Tower E-ATX Case

SKU : Q500-DGNN-S00
Brand : Cooler Master
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Materials - Exterior: Steel, Plastic, Tempered Glass, Expansion Slots: 7, I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C, I/O Panel - Audio In / Out: 1x 3.5mm Combo, Clearance - GFX: 365mm, Dust Filters: Front, Top, Bottom, Right side, Warranty: 02 Years, Q500-DGNN-S00.
Ask a question about this product

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cooler Master | Model # Q500-DGNN-S00


Introducing the all-new Qube 500, a highly customizable flat pack case from Cooler Master that allows you to emphasize your own personal style and creativity. The QUBE 500 comes flat packed and disassembled, designed to offer a fun, easy, and satisfying build experience that starts from scratch. Plus, The Qube 500's innovative packaging greatly reduces its transportation carbon footprint and overall environmental costs. From dual 280mm radiator slots and 8 fan locations to EATX support, this case has all you need for a moder build all at a super compact size of just 33L.



  • Features modular panels that simplify and streamline the usual case prep process. Every panel is separately removable for easy maintenance.
  • An unprecedented level of customisability allows for full creative expression.
  • The Qube 500 can house almost anything you would expect from a larger case, from EATX Motherboards and the latest GPUs to dual 280mm radiators.
  • The Qube 500 is compatible with 280mm water coolers, 172mm air coolers, 173mm ATX PSUs, E-ATX motherboards and smaller, and 360mm GPUs.
  • The side radiator mount has two positions, allowing you to install a 280mm radiator or provide your GPU with extra airflow.
  • Fully express yourself with the multi-colour Macaron edition. It includes two sets of extra panels, an extra handlebar, and two accessory hooks. Mix and match the modular panels to create a case that is truly your own.
  • The Qube 500 comes with a living accessory ecosystem. A Gem mini cable manager and a handle-bar is included, and Cooler Master have prepared some 3D-printable files for you to create your own accessories.



  • Materials - Exterior: Steel, Plastic, Tempered Glass
  • Expansion Slots: 7
  • I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C
  • I/O Panel - Audio In / Out: 1x 3.5mm Combo
  • Clearance - GFX: 365mm
  • Dust Filters: Front, Top, Bottom, Right side

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Exterior Color 3x set: Mint, Pink, Cream
Materials - Exterior Steel, Plastic, Tempered Glass
Materials - Left Side Panel Grey TG + Steel
Dimensions (L x W x H) 406 x 231 x 415mm (Incl. Protrusions),
380 x 231 x 381mm (excl. Protrusions)
Volume 33.44L (excl. Protrusions)
Motherboard Support ITX, Micro ATX, ATX, E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)
Expansion Slots 7
3.5" Drive Bays 4
2.5" Drive Bays 3
I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C
I/O Panel - Audio In / Out 1x 3.5mm Combo
Pre-installed Fans - Rear 1x 120mm (1800 RPM) SF ARGB White PWM
Fan Support - Front 1x 120/140mm (x2 if PSU is mounted in bottom)
Fan Support - Top 2x 120/140mm
Fan Support - Rear 1x 120mm
Fan Support - Bottom 2x 120/140mm
Fan Support - Left side 2x 120/140mm
Radiator Support - Front 120mm, 140mm, (240/280mm w/ PSU in bottom)
Radiator Support - Top 120mm, 140mm, 240mm, 280mm, (280mm can be used within 53mm thickness)
Radiator Support - Rear 120mm
Radiator Support - Bottom 120mm, 140mm, 240mm, 280mm
Radiator Support - Left side 120mm, 140mm, 240mm, 280mm
Clearance - CPU Cooler 164mm-172mm (Remove the water cooling bracket)
Clearance - PSU 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space)
Clearance - GFX 365mm
Cable Routing - Behind Motherboard Tray 29-32mm
Handle Mint x 1, Grey x 1
Gem Mini Grey x 1
Accessory Hook x 2
Dust Filters Front, Top, Bottom, Right side
Power Supply Support SFX-L, SFX, ATX
Warranty 2 years
Series QUBE Series
Size Mid Tower
