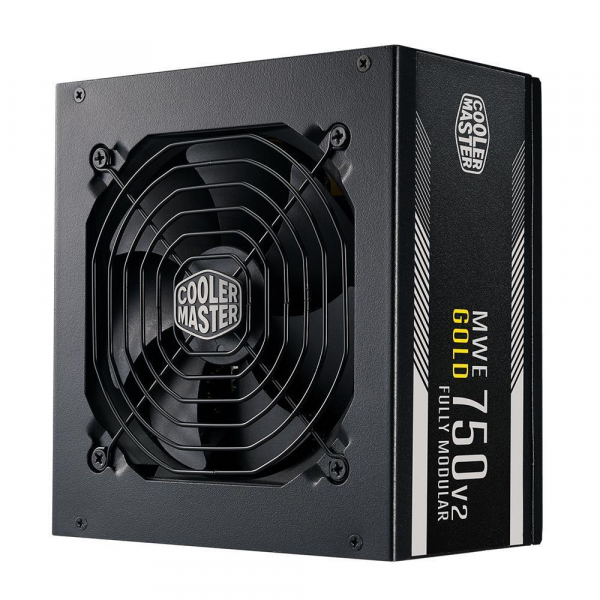

Cooler Master MWE 750W V2 80 PLUS Gold Full Modular PSU MPE-7501-AFAAG-AU

Brand : Cooler Master
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Model: MPE-7501-AFAAG, ATX Version: ATX 12V Ver. 2.41, PFC: Active PFC, Input Voltage: 100-240V, Input Current: 10-5A, Input Frequency: 47-63Hz, Dimensions (L x W x H): 160 x 150 x 86 mm, Fan Size: 120mm, Fan Bearing: HDB, Fan Speed: 1500 RPM, Noise Level @ 20%: 0 dBA, Noise Level @ 50%: 17.8 dBA, Noise Level @ 100%: 24.9 dBA, Efficiency: >90% @ Typical Load, 80 PLUS Rating: 80 PLUS Gold, ErP 2014 Lot 3: Yes, Operating Temperature: 0-50°C, Power Good Signal: 100 - 150 ms, ATX 24 Pin Connectors: 1, EPS 4+4 Pin Connectors: 1, EPS 8 Pin Connector: 1, SATA Connectors: 12, Peripheral 4 Pin Connectors: 4.
Ask a question about this product

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cooler Master | Model # MPE-7501-AFAAG-AU


The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.



  • Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world.
  • All MWE Gold - V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you'll have enough connectors to use your ideal components.
  • The MWE Gold - V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come.
  • While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely.
  • The full modular version of the MWE Gold - V2 comes with a set of flat black cables that can be customized to each user's individual needs. With a full modular setup, each system only needs to include the cables required for its individual components.



  • ATX Version: ATX 12V Ver. 2.41
  • PFC: Active PFC
  • Input Voltage: 100-240V
  • Input Current: 10-5A
  • Input Frequency: 47-63Hz
  • Dimensions (L x W x H): 160 x 150 x 86 mm
  • Fan Size: 120mm
  • Fan Bearing: HDB
  • Fan Speed: 1500 RPM
  • Noise Level @ 20%: 0 dBA
  • Noise Level @ 50%: 17.8 dBA
  • Noise Level @ 100%: 24.9 dBA


Manufacturer Warranty: 05 Years Limited Warranty

Technical Specifications

Model MPE-7501-AFAAG
ATX Version ATX 12V Ver. 2.41
PFC Active PFC
Input Voltage 100-240V
Input Current 10-5A
Input Frequency 47-63Hz
Dimensions (L x W x H) 160 x 150 x 86 mm
Fan Size 120mm
Fan Bearing HDB
Fan Speed 1500 RPM
Noise Level @ 50% 17.8 dBA
Noise Level @ 20% 0 dBA
Noise Level @ 100% 24.9 dBA
Efficiency ≥90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 - 150 ms
Hold Up Time >16ms at 100% Load
MTBF >100,000 Hours
Protections OVP, OPP, OTP, SCP, OCP, UVP
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 12
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 4
Series MWE Gold Series
80 Plus Gold
Modular Full Modular
Wattage 500 to 750W
