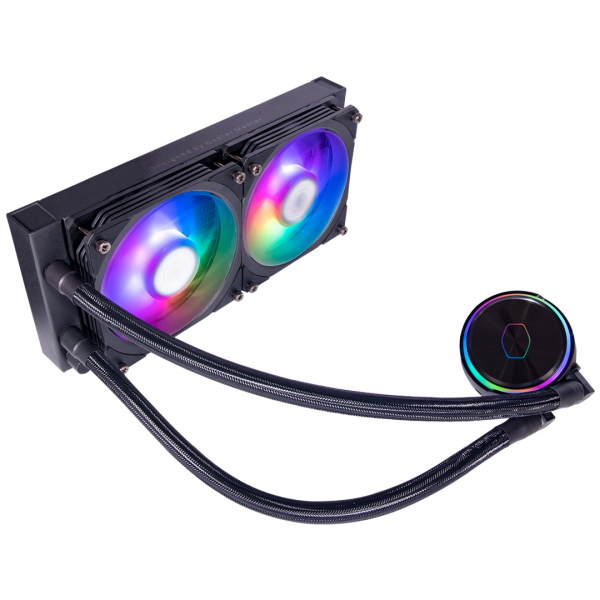

Cooler Master MasterLiquid PL240 Flux ARGB 240mm CPU Liquid Cooler MLY-D24M-A23PZ-R1

SKU : MLY-D24M-A23PZ-R1
Brand : Cooler Master
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Product Number: MLY-D24M-A23PZ-R1, Exterior Color: Black, Radiator Material: Aluminum, Radiator Dimensions: 277 x 119.6 x 27.2 mm / 10.7 x 4.7 x 1.07 inch, Pump Dimensions: 89 x 75 x 40 mm / 3.5 x 2.95 x 1.57 inch, Pump MTTF: >210,000 hours, Pump Noise Level: 15 dBA (Max), Pump Connector: 4-Pin (PWM), Pump Rated Voltage: 12 VDC, Pump Power Consumption: 6W, Fan Dimensions (L x W x H): 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch, Fan Quantity: 2 PCS, Fan LED Type: Addressable Gen 2 RGB, Fan Airflow: 72.37 CFM (Max), Fan Noise Level: 32 dBA, Fan Pressure: 2.96 mmH2O (Max), Fan Bearing Type: ORBS.
Ask a question about this product
$204.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cooler Master | Model # MLY-D24M-A23PZ-R1



Cooler Master's Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.



Features:

  • New Dual Chamber Pump more compact than before while delivering the perfect volume of flow to pressure for impressive cooling performance.
  • Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.
  • High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.
  • Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.
  • Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.



Overview:

  • Product Number: MLY-D24M-A23PZ-R1
  • Exterior Color: Black
  • Radiator Material: Aluminum
  • Radiator Dimensions: 277 x 119.6 x 27.2 mm / 10.7 x 4.7 x 1.07 inch
  • Pump Dimensions: 89 x 75 x 40 mm / 3.5 x 2.95 x 1.57 inch
  • Pump MTTF: >210,000 hours
  • Pump Noise Level: 15 dBA (Max)
  • Pump Connector: 4-Pin (PWM)
  • Pump Rated Voltage: 12 VDC



Manufacturer Warranty: 05 Years Limited Warranty

Technical Specifications

Product Number MLY-D24M-A23PZ-R1
Exterior Color Black
CPU Socket LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, TR4
Radiator Material Aluminum
Radiator Dimensions 277 x 119.6 x 27.2 mm / 10.7 x 4.7 x 1.07 inch
Pump Dimensions 89 x 75 x 40 mm / 3.5 x 2.95 x 1.57 inch
Pump MTTF >210,000 hours
Pump Noise Level 15 dBA (Max)
Pump Connector 4-Pin (PWM)
Pump Rated Voltage 12 VDC
Pump Power Consumption 6W
Fan Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
Fan Quantity 2 PCS
Fan LED Type Addressable Gen 2 RGB
Fan Speed 0-2300 RPM ± 10%
Fan Airflow 72.37 CFM (Max)
Fan Noise Level 32 dBA
Fan Pressure 2.96 mmH2O (Max)
Fan Bearing Type ORBS
Fan Life Expectancy >160,000 Hours
Fan Power Connector 4-Pin (PWM)
Fan Rated Voltage 12VDC
Fan Rated Current 0.15A
Fan Safety Current 0.3A
RAM Clearance N/A
Warranty 5 years
Series MasterLiquid Pro
Cooler Type Liquid Cooler
Radiator Size 240
