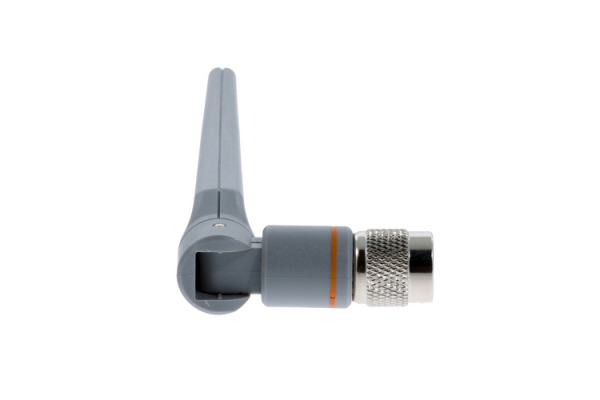

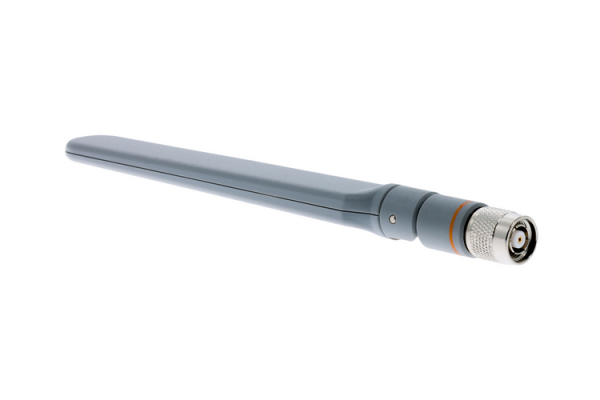

CISCO ( ) 2.4 Ghz 2 Dbi/5 Ghz 4 Dbi Dipole Ant. AIR-ANT2524DG-R

Manufacture # CISCO | Model # AIR-ANT2524DG-R

The next generation of Cisco Aironet 802.11n access points -the Cisco Aironet 3600e Series and 1550 Series- requires the use of dual-band external antennas to make them fully functioning units. As these access points take greater advantage of the multiple-input multiple-output (MIMO) features supported under the 802.11n standard, the number of radio transceivers per frequency band has increased. Using dual-band antenna ports allows the access point to support these added transceivers while maintaining a reasonably low number of antenna connections. Each dual-band antenna can transmit or receive Wi-Fi signals in both the 2.4-GHz and 5-GHz bands simultaneously.

Features:

• Cisco ( ) 2.4 Ghz 2 Dbi/5 Ghz 4 Dbi Dipole Ant. Gray Rp-tnc ( Air-ant2524dg-r )
• System Requirements:
• This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports, labeled as such in orange text.
• The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its joint.

Overview:

• Product Type: Antenna
• Antenna Gain: 4 dBi
• Connector Type: RP-TNC
• Form Factor: Dipole
• Application/Usage: Wireless Data Network

Manufacturer Warranty: 01 Years Limited Warranty
