Beige Bail Latch Color, Speed 10 Gbps, Hot Pluggable, MSA Compliant, RoHS Compliant, 1310nm Wavelength, Duplex LC Connector.
The D-Link 10GBASE SFP+ Transceivers offer customers a wide variety of 10Gbps Ethernet connectivity option for data center, enterprise wiring closet, and service provider transport applications. Compared with existing 10G XFP, 10G SFP+ is with smaller form factor, with lower cost, lower power dissipation, and allows higher port density.
We Accept
Manufacture # D-Link | Model # DEM-431XT
The D-Link 10GBASE SFP+ Transceivers offer customers a wide variety of 10Gbps Ethernet connectivity option for data center, enterprise wiring closet, and service provider transport applications. Compared with existing 10G XFP, 10G SFP+ is with smaller form factor, with lower cost, lower power dissipation, and allows higher port density.

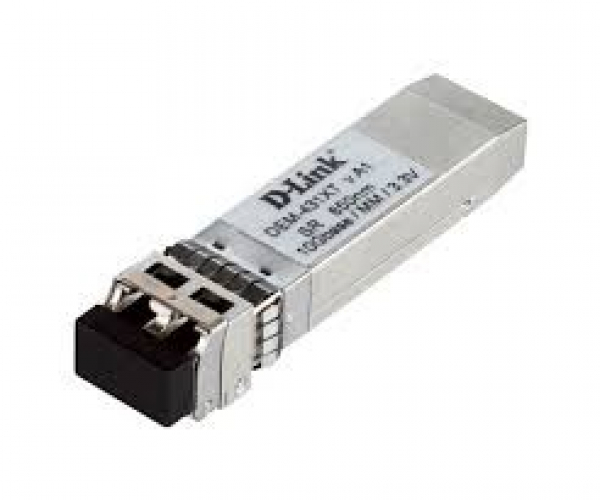

The DEM-431XT-DD is a 10GBASE-SR high performance 850nm multimode SFP+ transceiver with Digital Diagnostics Monitoring (DDM) support. It supports full duplex, 10Gigabit speeds on Multi-Mode fiber for distances of up to 33m/300m on 62.5µm/50µm fiber respectively. DDM allows Real time monitoring of critical device parameters including: bias current, transmit & receive power, temperature, and voltage. The DEM-431XT-DD is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Standard Compliance | IEEE-802.3ae 10GBASE-SR |
| Form Factor Type | SFP+ |
| Fibre Channel FC-PI Standard | 1200-Mx-SN-I |
| Fiber Media Support | Multi-Mode |
| Distance Capacity | 62.5 µm, 160MHz-km: 220 m 62.5 µm,OM1, 200MHz-km: 33 m 50 µm, 400MHz-km: 66 m 50 µm,OM2, 500MHz-km: 82 m 50 µm,OM3, 2000MHz-km: 300 m |
| Hot Pluggable | Yes |
| MSA Compliant | Yes |
| RoHS Compliant | Yes |
| MAC Address Update | Yes |
| DDM (Digital Diagnostics Monitoring) | Yes |
| Speed | Speed 10 Gbps |
| Connector | Duplex LC Connector |
| Single/Bi-Directional | Single Direction |
| Wavelength | 1310nm |
| Output Optical Power (TX Optical Power) | Max.: -1 dBm Min.: -5 dBm |
| Input Optical Power (RXOptical Power) | Max.: 0.5 dBm Min.: -11.1 dBm |
| Sensitivity | -6.5 dBm |
| Cable Type | Multi-mode 50/125 µm or 62.5/125 um fiber |
| Power | 3.3 V |
| Weight | 0.05 lbs (22g) |
| Dimensions (W x D x H) | 0.58 x 2.22 x 0.47 inches (14.8 x 56.5 x 11.85 mm) Compliant with SFF8432 |
| Bail Latch Color | Beige |
