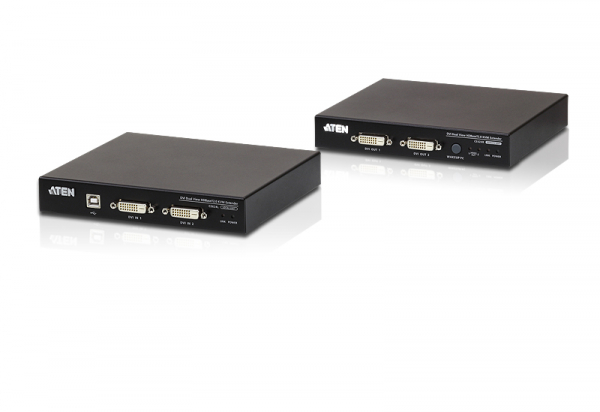

ATEN Usb Dvi Dual View Kvm Extender CE624-AT-U

Description

"

Details:

The ATEN CE-624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video audio USB and RS-232 signals available on the market.

The CE-624 delivers high-quality DVI Dual View video PCM 2-channel digital audio USB 2.0 and RS-232 signals up to 100 metres from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals the CE-624 is ideal for applications where convenient remote access is required – in places such as transportation control centres medical facilities industrial warehouses and extended workstations.

Specifications:

Remote Ports

• 2 x DVI-D Female (White)
• 3 x USB Type A Female (White)
• 1 x Mini Stereo Jack Female (Green)
• 1 x Mini Stereo Jack Female (Pink)
• 1 x DB-9 Male (serial)
• 1 x DC Jack with Locking
• 1 x RJ45 Female
• 1 x Wakeup Push Button

Local Ports

• 2 x DVI-D Female (White)
• 1 x USB Type B Female (White)
• 1 x Mini Stereo Jack Female (Green)
• 1 x Mini Stereo Jack Female (Pink)
• 1 x DB-9 Female (serial)
• 1 x DC Jack with Locking
• 1 x RJ45 Female

Video Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (cat 6/6a)
1080P@100m

Environmental

• Operating Temperature 0–40°C
• Storage Temperature -20–60°C
• Humidity 0–80% RH Non-condensing

Physical Properties Per Unit

• Housing Metal
• Weight 0.80 kg
• Dimensions (L x W x H) 17.42 x 15.94 x 2.88 cm
