Sku: KN4164V-AX-U
Brand: ATEN
Category: KVM Over IP
Shipping Information
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find

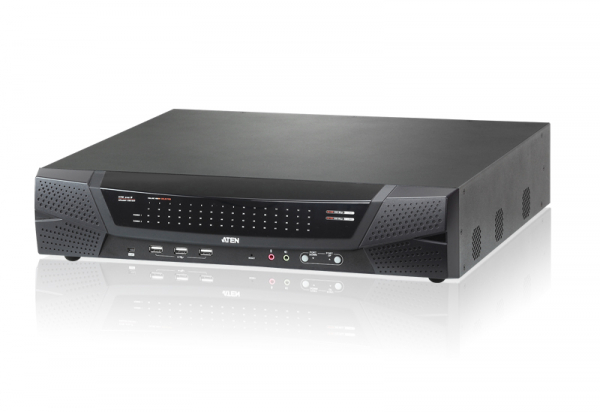

The ATEN KN4164V KVM over IP Switch offers superior Full HD video resolution (1920 x 1200), enhanced virtual media speeds, and top-tier security (FIPS 140-2 Level 1). Designed for reliable remote access, it supports out-of-band management with multiple connectivity options, including external modem support. Ideal for data center management, it integrates seamlessly with ATEN’s CC2000 Management Software and offers powerful features like dual NICs, dual power supplies, and out-of-band management. This device provides high availability and efficient network management for servers, storage, routers, and more.
100% Guarantee Safe Checkout
Description
Manufacture: Aten | Model: KN4164V-AX-U
Console Connections | |
Local | 1 |
Remote | 4 |
Computer Connections | |
Direct | 64 |
Maximum | 512 (via Cascade) |
Port Selection | Pushbuttons, Hotkeys, GUI |
Connectors | |
Console Ports | 2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x VGA HDB-15 (Blue) 1 x RJ-45 Female (Black) |
USB Port | 3 x USB Type A Female |
Audio | 2 x Audio Jack Female |
Laptop USB Console (LUC) Port | 1 x USB Mini-B Female |
KVM Ports | 64 x RJ-45 Female |
Serial | 1 x RJ-45 Female |
PON | 1 x RJ-45 Female |
LAN Ports | 2 x RJ-45 Female |
Power | 2 x IEC 60320/C14 |
Switches | |
Port Selection | 2 x Pushbuttons |
Reset | 1 x Semi-recessed Pushbutton |
Power | 2 x Rocker Switches |
LEDs | |
Online / Selected | 64 (Green/Orange) |
Link 10 / 100 / 1000 Mbps | 2 (Red/Orange/Green) |
Power | 2 (Blue) |
Emulation | |
Keyboard / Mouse | PS/2; USB |
Video | |
Local | 1920 x 1200 @ 60Hz |
Remote | 1920 x 1200 @ 60Hz |
Scan Interval | 1 – 255 Sec |
Maximum Input Power Rating | 100–240V~ ; 50-60Hz; 1A |
Power Consumption | AC110V:49.4W:268BTU/h AC220V:47.3W:258BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | |
Operating Temperature | 0 - 40?C |
Storage Temperature | -20 - 60?C |
Humidity | 0 - 80% RH, Non-condensing |
Physical Properties | |
Housing | Metal |
Weight | 7.00 kg ( 15.42 lb ) |
Dimensions (L x W x H) | 43.36 x 41.26 x 8.80 cm (17.07 x 16.24 x 3.46 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
