ATEN 8 Port Rackmount Usb Dual Link Dvi Kvm CS1788-AT-U

Description

"

Details:

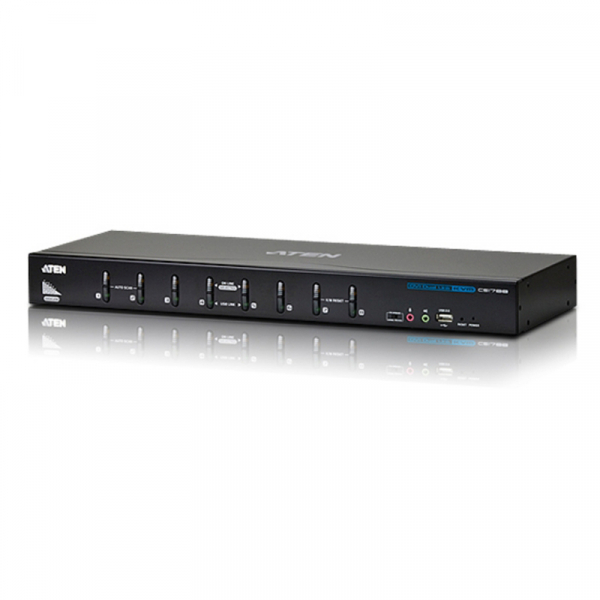

Aten CS-1788 – 8-Port USB DVI Dual Link KVM Switch

The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard USB mouse and dual-monitor (DVI-I and VGA) console.

It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console making it ideal for IT applications and management.

In addition the CS1788 features Multi-view functionality which enables the use of standard USB cables to stack up to four switches for quad-viewing in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast analyse and monitor video output in convenient ways substantially simplifying the working environment.

CS1788 Zoom In

Furthermore the CS1788 comes with ATEN´s on-screen display (OSD) function which can access any computer connected to the installation it also offers OSD configuration back up/restore to save/ back up the OSD settings and restore them as needed.

The CS1788 provides multimedia keyboard support and is audio enabled. Two microphones can provide audio input to each of the computers and you can listen to the audio output of each computer on two sets of speakers (on a one-at-a-time basis).

Specifications:

• Computer Connections:
• Direct: 8
• Max.: 512 (via Cascade)
• Port Selection: OSD Hotkey Pushbutton
• Connectors:
• Console Ports:
• Keyboard: 1 x USB Type A Female (Black)
• Video: 1 x HDB-15 Female (Blue) / 1 x DVI-I Female (white)
• Mouse: 1 x USB Type A Female (Black)
• Speakers: 2 x Mini Stereo Jack Female (Green; 1 x front panel 1 x rear panel)
• Microphone: 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)
• KVM Ports:
• KB / Mouse: 8 x USB Type B Female (White)
• Video: 8 x DVI-I Female (White)
• Speakers: 8 x Mini Stereo Jack Female (Green)
• Microphone: 8 x Mini Stereo Jack Male (Pink)
• F/W Upgrade: 1 x RJ-11 Female
• Power: 1 x DC Jack
• USB 2.0 Hub: 2 x USB Type A Female (White; 1 x front panel 1 x rear panel)
• Switches:
• Port Selection: 8 x Pushbutton
• Reset: 1 x Semi-recessed Pushbutton
• F/W Upgrade: 1 x Slide Switch
• LEDs:
• USB Link: 8 (Green)
• On Line / Selected: 8 (Orange)
• Power: 1 (Dark Green)
• Emulation - Keyboard / Mouse: USB
• Video: DVI Dual Link: 2560 x 1600
• VGA: 2048 x 1536
• Scan Interval: 1 – 255 Seconds (Default: 5 secs)
• Power Consumption: DC 5.3V 6.47 W
• Environment:
• Operating Temp.: 0 ~ 50°C
• Storage Temp.: -20 ~ 60°C
• Humidity: 0 ~ 80% RH Non-condensing
• Physical Properties:
• Housing: Metal
• Weight: 2.80 kg
• Dimensions (LxWxH): 43.72 x 16.11 x 4.40cm
• Package Contents:
• 1 x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
• 2 x Custom USB DVI-D Dual Link KVM Cable Sets
• 1 x Firmware Upgrade Cable
• 1 x Power Adapter
• 1 x Foot Pad Set (4 pcs)
• 1 x User Instructions
