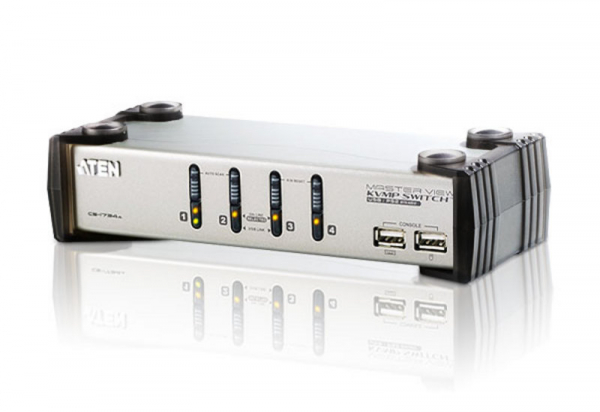

CS1734A KVM Switch has built-in USB on each of the front and rear panels and audio signal connectors. It allows users to control the computer and peripheral devices via a signal console at ease.
| Computer Connections | 4 | ||
| Port Selection | Hotkeys Pushbutton | ||
| USB Port/Audio Port Selection | Hotkey | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) |
| Video | 1 x HDB-15 Female (Black) | ||
| Mouse | 1 x USB Type A Female (White) | ||
| Speaker | 1 x Mini Stereo Jack Female(Green) | ||
| Microphone | 1 x Mini Stereo Jack Female (Pink) | ||
| KVM Ports | Keyboard/Video/Mouse | 4 x SPHD-15 Female (Yellow) | |
| Speaker | 4 x Mini Stereo Jack Female (Green) | ||
| Microphone | 4 x Mini Stereo Jack Female (Pink) | ||
| USB Hub | 2 x USB Type A Female (Black) | ||
| F/W Upgrade | 1 x RJ11 Female (Black) | ||
| Power | 1 x DC Jack | ||
| Switches | Port | 4 x Pushbutton | |
| F/W Upgrade | 1 x Slide | ||
| LEDs | On Line/ Selected | 4 (Orange) | |
| USB Link | 4 (Green) | ||
| Emulation | Keyboard/Mouse | USB | |
| Video | 2048 x1536; DDC2B | ||
| Scan Interval | 1~99 seconds | ||
| Power Consumption | DC5V 1.25W | ||
| Environment | Operating Temp. | 0~50 °C | |
| Storage Temp. | -20~60 °C | ||
| Humidity | 0~80% RH Non-densing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.70 kg | ||
| Dimensions ( L x W x H ) | 21.00 x 8.70 x 5.50 cm |
