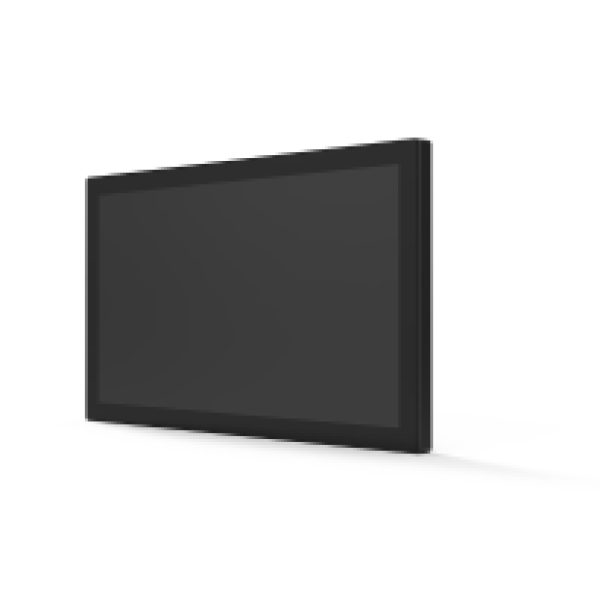

Advantech VUE-2000 10.1" WXGA Touch Panel Mount Monitor

SKU : VUE-2101-WX50PA-A4
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Screen Size: 10.1" WXGA, Contrast Ratio: 1300:1 (Typ.), Brightness: 500 nits, Aspect Ratio: 16:10, Touch Type: Projected Capacitive Touch, Vesa: Yes, Warranty: 02 Years, VUE-2101-WX50PA-A4.
Ask a question about this product

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Advantech | Model # VUE-2101-WX50PA-A4


The VUE-2101-WX50PA-A4 is a 10.1-inch WXGA touch panel mount from Advantech. It features a 10.1-inch active screen size, support for 10-point touch function (PCAP), built-in rich I/O interfaces for diverse connectivity, and easy extension of peripheral devices (box PC/camera...). It is also applicable for an active stylus pen as an optional accessory.



  • 10.1" active screen size
  • Support 10-point touch function (PCAP)
  • Built-in Rich I/O interfaces for diverse connectivity
  • Easy to extend peripheral devices (box PC/camera...)
  • Applicable for active stylus pen as optional accessory
  • Adopt advanced touch IC with CS10V capability for noise defense
  • Reach high level impact protection (IK08) at center point
  • With AG treatment on screen for comfortable viewing experience
  • Front IP65 Water-proof rating



  • Screen Size: 10.1" WXGA
  • Contrast Ratio: 1300:1 (Typ.)
  • Brightness: 500 nits
  • Aspect Ratio: 16:10
  • Touch Type: Projected Capacitive Touch
  • Vesa: Yes


Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Screen Size 10.1 inch
Resolution 1280 x 800 (WXGA)
Brightness 500 nits (LCM panel, typ.)
Contrast Ratio 1300:1 (Typ.)
Aspect Ratio 16:10
Viewing Angle 85° / 85° / 85° / 85°
Response Time 25 ms (Typ.)
Backlight Life (hours) 50,000 (Typ.)
Touch Type Projected Capacitive Touch (PCAP)
Touch Function 10 points
Touch Interface USB
Input VGA x 1
HDMI x 1
DVI-D x 1
DisplayPort x 1
Audio line in x 1
USB typeB 3.0 x 1 (for touch function)
USB typeA 3.0 x 2
Output Video: N/A
Audio: 2W+2W Internal Speaker
Control: N/A
OSD Function Hot key (ON/OFF, LIFT, RIGHT, MENU, AUTO)
OSD Language English, French, Korea, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese
Power Type External AC to DC power adapter, 20V, 45W
Power Input 100-240VAC, 50-60Hz, 2.25A
Power Consumption ON: <35W; SLEEP: <0.5W; OFF: <0.3W
Operating Temperature 0°C- +40°C
Operating Humidity 10% to 85% (non-condensing)
Storage Temperature -25°C ~ 55°C
Storage Humidity 5% to 93% (non-condensing)
Housing Material 0.8 mm sheet metal (Black)
VESA Compatibility 100 x 100 mm
Dimensions (W x H x D) 258 x 180 x 51 mm
Weight 1.5 Kg
Mounting on a wall/machine 100 x 100 mm, VESA grid
Mounting with stand/arm 100 x 100 mm, VESA grid
Mounting through bracket 64 mm, Side mount screw hole
