Sku: U6-IW
Brand: Ubiquiti
Category: Access Points
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Enclosure materials: Plastic, aluminum, Mount material: Aluminum, Button: Factory reset, LED: White/blue, Power method: PoE, Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3), BSSID: 8 per radio, VLAN: 802.1Q, Advanced QoS: Per-user rate limiting, Guest traffic isolation: Supported, Concurrent clients: 300+, Zero-wait DFS: Yes.
We Accept

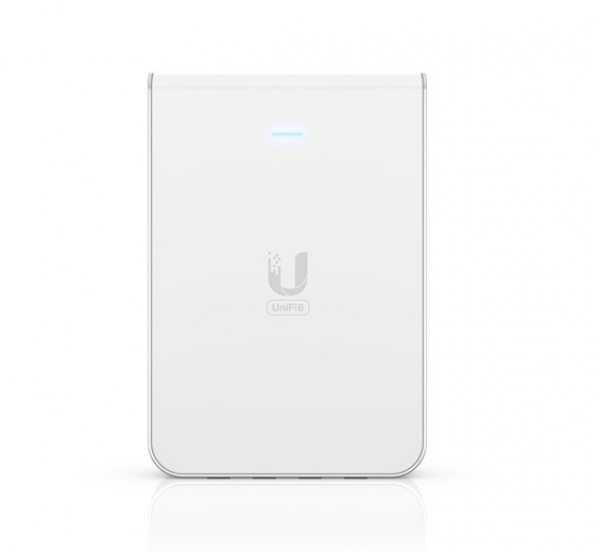

Manufacture # Ubiquiti | Model # U6-IW
Easily accessible through any standard web browser and the UniFi app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Dimensions | 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28") |
| Weight | 460 g (1.01 lb) |
| Enclosure materials | Plastic, aluminum |
| Mount material | Aluminum |
| Management interfaces | Ethernet Bluetooth |
| Networking interfaces | (1) Data-in: 1GbE RJ45 port (4) Data-out: 1GbE RJ45 ports |
| PoE interfaces | (1) PoE in (PoE output not used) (1) PoE out (requires a PoE+ switch) |
| Button | Factory reset |
| LED | White/blue |
| Power method | PoE |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (optional) |
| Max. power consumption | Excluding PoE output: 13.5W |
| Max PoE wattage per port by PSE | 15.4W* |
| Voltage range PoE mode | 44 - 57V DC |
| Max. TX power | 2.4 GHz - 22 dBm 5 GHz - 26 dBm |
| MIMO | 2.4 GHz - 2 x 2 (UL MU-MIMO) 5 GHz - 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate | 2.4 GHz - 573.5 Mbps 5 GHz - 4.8 Gbps |
| Antenna gain | 2.4 GHz - 5 dBi 5 GHz - 5.9 dBi |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero-wait DFS | Yes |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
