Ubiquiti UniFi Dream Router 7 Compact AP. Ideal platform to build your ultimate SMB mesh network, access point and everything-in-one WiFi 7 triband device
We Accept
Ubiquiti UniFi Dream Router 7 Compact Access Point
SKU: UDR7 Warranty: 12 Months
Dream Router 7
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
The Dream Router 7 serves as a desktop 10G cloud gateway, delivering high-speed networking with integrated Wi-Fi 7 support. This ensures enhanced wireless performance, reduced latency, and seamless connectivity for modern applications.
Desktop gateway firewall with an integrated WiFi 7 access point that powers your network and full UniFi application suite.

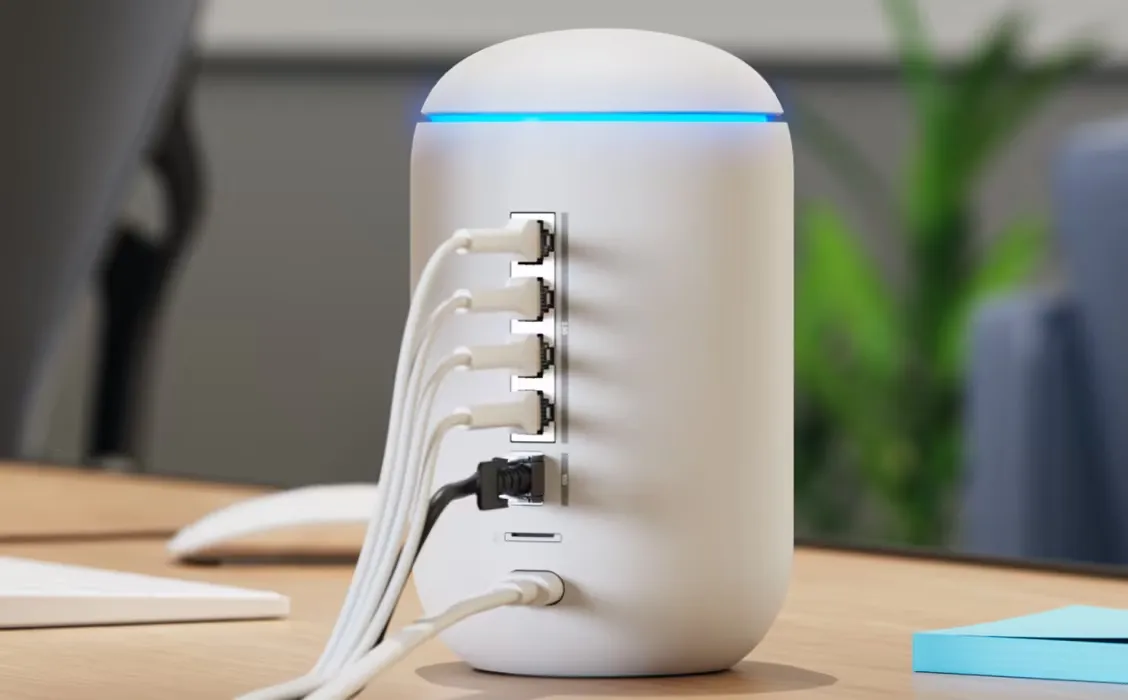

The Dream Router 7 features a 10G SFP+ port, enabling ultra-fast WAN connections to support high-bandwidth applications and future-proof your network infrastructure. In addition to its 10G WAN port, the UDR7 includes three 2.5 GbE RJ45 LAN ports, one of which supports PoE.

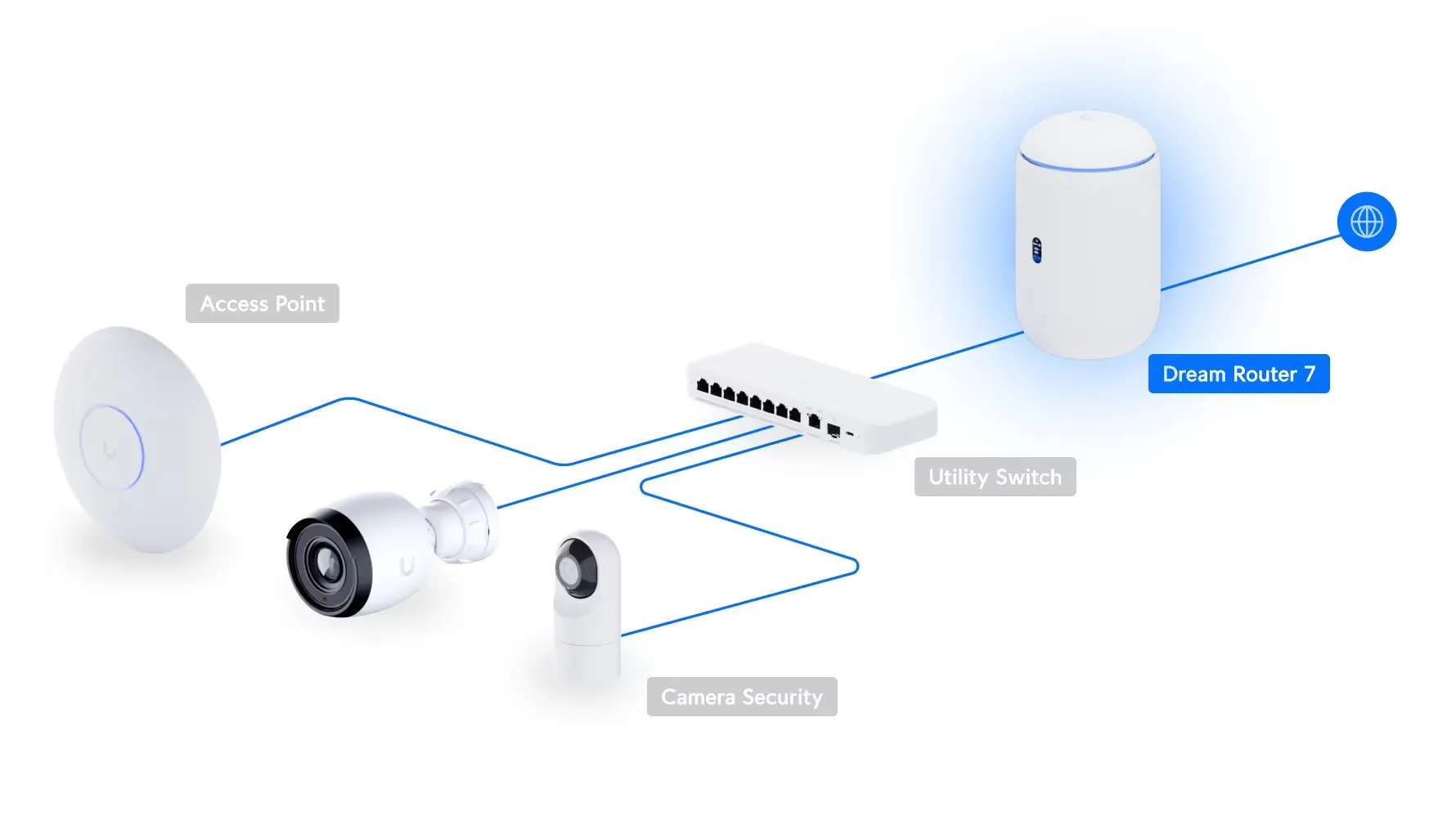

Equipped with full UniFi application support, the Dream Router 7 allows for centralised management of network devices, security cameras, and more. This integration simplifies network administration and enhances overall system efficiency.
With a built-in microSD card slot, the Dream Router 7 offers expandable storage options for applications like UniFi Protect. This provides flexibility in managing and storing surveillance footage and other critical data.
| General | |
|---|---|
| Dimensions | ⌀110 x 184.1 mm (⌀4.3 x 7.3") |
| Form Factor | Compact desktop |
| Coverage Area | 160 m² (1,750 ft²) |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |
| UniFi Application Suite | |
| Network | ✓ |
| Protect | ✓ |
| Access | ✓ |
| Talk | ✓ |
| Connect | ✓ |
| Capacity | |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD, (2) 2K, (1) 4K |
| Simultaneous Users | 300+ |
| Ports | |
| Max WAN Port Count | 4 |
| Default WAN Ports | (1) 10G SFP+, (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 4 (1 PoE) |
| 10G SFP+ | 1 |
| Performance | |
| IDS/IPS Throughput | 2.3 Gbps |
| MAC Address Table Size | 2,000 |
| Security | |
| Stateful Firewall | ✓ |
| Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site Magic VPN | ✓ |
| IPsec | ✓ |
| WireGuard | ✓ |
| OpenVPN | ✓ |
| L2TP | ✓ |
| Hardware | |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory | 3 GB |
| NVR Storage | Pre-installed 64GB microSD |
| Expansion Slot | MicroSD Card |
| PoE Budget | 15.4W |
| Max Power Consumption | 26W |
| Operating Environment | |
| Operating Temperature | -10 to 40°C |
| Operating Humidity | 5–95% non-condensing |
| Compliance | |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
