TP-LINK Tplink Eap220 300mbps Wireless Ac1200 EAP225

SKU : EAP225
Brand : TP-Link
Availablity : In stock
Ships within 1 and 3 days
TP-LINK EAP22, Power 802.3af/at PoE PoE or passive PoE, Ceiling mount or wall mount (mounting kit included), Wireless IEEE 802.11ac/n/g/b/a, Signal 5GHz:Up to 867Mbps, 2.4GHz:Up to 450Mbps, Frequency 2.4GHz and 5GHz. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Ask a question about this product
$123.00

Estimated Shipping

Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # TP-Link | Model # EAP225

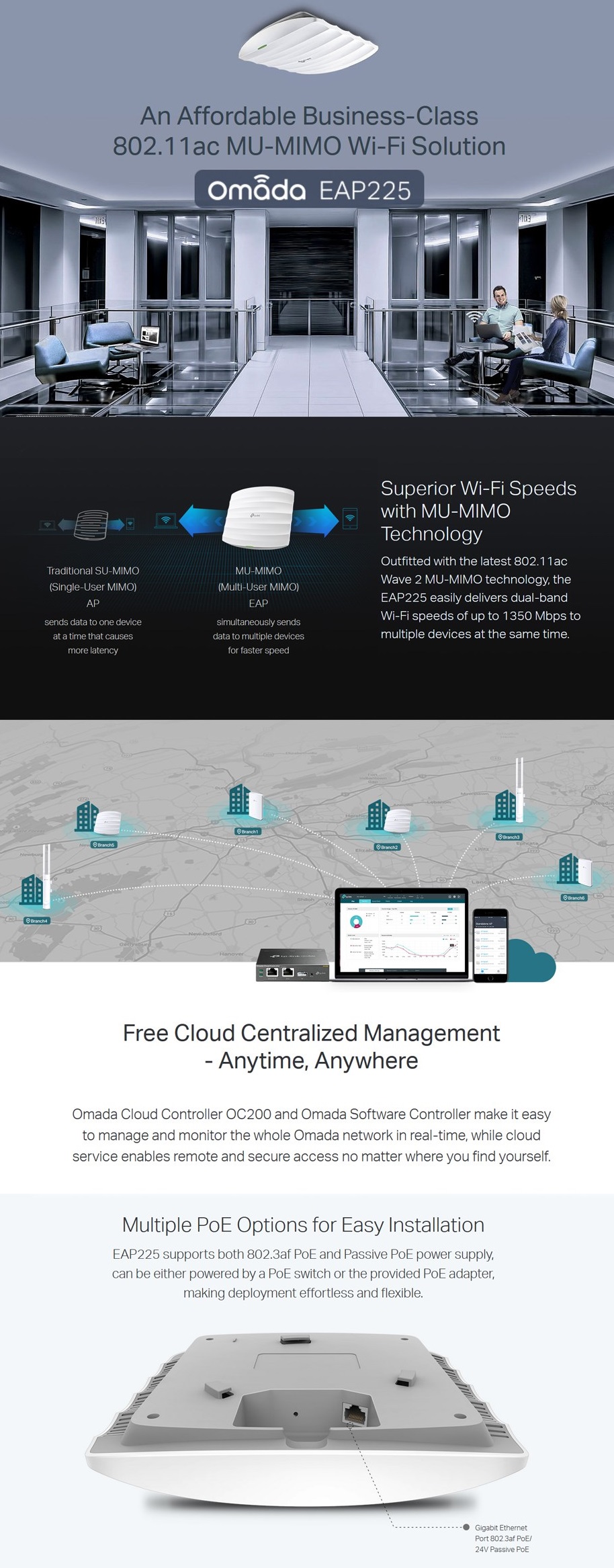

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time. Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.



Features:

  • Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
  • EAP Controller Software lets administrators easily manage hundreds of EAPs
  • Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
  • Captive portal provides a convenient method for guest authentication
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • MU-MIMO2 means access points simultaneously transfer data with multiple devices, speeding up connections
  • Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
  • Supports management VLAN for an enhanced network management
  • Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose.



Overview:

  • Interface: Gigabit Ethernet (RJ-45) Port x 1 (Support IEEE802.3af or passive PoE)
  • Physical Security Lock: Yes
  • Button: Reset
  • Power Supply: 802.3af/at PoE PoE or passive PoE
  • Power Consumption: 12.6W



Manufacturer Warranty: 01 Years Limited Warranty



Technical Specifications

Interface Gigabit Ethernet (RJ-45) Port x 1
(Support IEEE802.3af or passive PoE)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE PoE or passive PoE
Power Consumption 12.6W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Dimensions 8.1 × 7.1 × 1.5 in
(206 × 182 × 37 mm)
Antenna Type 3 Internal Omni
2.4GHz: 4dBi
5GHz: 5dBi
Mounting Ceiling mount or wall mount (mounting kit included)
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 867Mbps*
2.4GHz:Up to 450Mbps*
Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Band Steering
Load Balance
MU-MIMO*
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power ≤24dBm(2.4GHz)
≤22dBm(5GHz)
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Certification FCC, RoHS
Package Contents AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kit
Installation Guide
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
