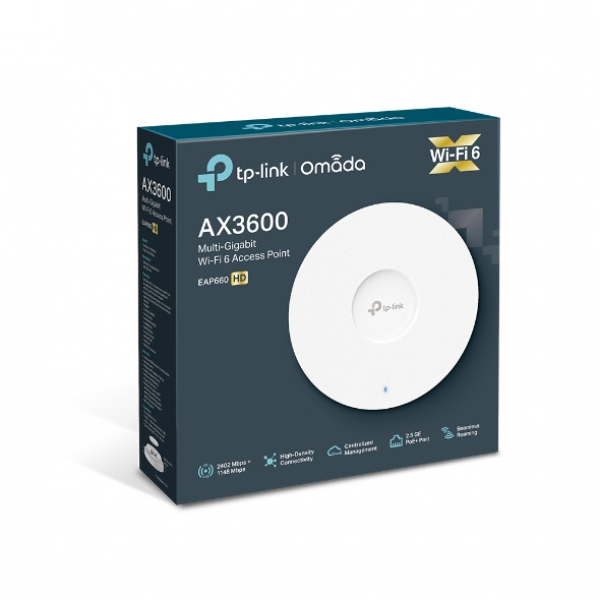

TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

Sku: EAP660 HD

Brand: TP-Link

Category: Routers-Gateways

$401.50

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Interface: 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE), Button: Reset, Power Supply: • 802.3at PoE; • 12 V DC, Power Consumption: • EU: 18.5 W; • US: 21.5 W, Dimensions ( W x D x H ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm), Antenna Type: Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi, Mounting: Ceiling /Wall Mounting (Kits included), Wireless Standards: IEEE 802.11ax/ac/n/g/b/a, Frequency: 2.4 GHz and 5 GHz, Email Alerts: Yes, LED ON/OFF Control: Yes.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # TP-Link | Model # EAP660 HD



The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.



Features:

  • Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.
  • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.



Overview:

  • Interface: 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
  • Button: Reset
  • Power Supply: • 802.3at PoE; • 12 V DC
  • Power Consumption: • EU: 18.5 W; • US: 21.5 W
  • Dimensions ( W x D x H ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
  • Antenna Type: Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi
  • Mounting: Ceiling /Wall Mounting (Kits included)
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes



Manufacturer Warranty: 05 Years Limited Warranty

Interface 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE; • 12 V DC
Power Consumption • EU: 18.5 W; • US: 21.5 W
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 2402 Mbps; • 2.4 GHz: Up to 1148 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
