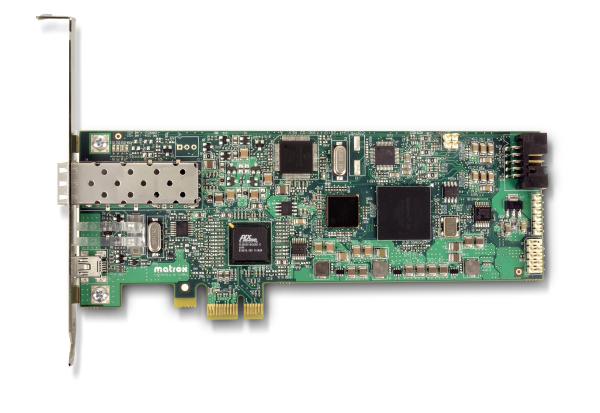

Matrox Extio2 PCIe x1 Fibre-Optic Spread Interface Card

Sku: XTO2A-FESLPAF

Brand: Matrox

Category: KVM Cables-Accessories

$1,061.50

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Link Connector: Dual-LC, USB Ports: 1x mini USB 2.0 (Type B), GPU: Matrox, Memory: 2 GB, Bus Interface: PCI Express x1 electrical and mechanical, 02 Years Limited Warranty, XTO2A-FESLPAF.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Matrox | Model # XTO2A-FESLPAF



Matrox Extio F2208 is a point-to-point, KVM extension solution that uses fiber-optic cable to separate the keyboard, mouse, USB, audio peripherals and up to two displays from the rest of the computer by up to 1 km (3280 feet). Equipped with the latest Matrox KVM technology, the Extio F2208 extends the bus via a PCIe bus interface card while the fiber-optical connection guarantees performance - eliminating hidden/dropped frames, data latency, and artifacts as seen with compression-based solutions.



Features:

  • High performance, zero compression KVM optical extension up to 1 km from the PC
  • Supports up to 2 displays (DisplayPort, Digital, or Analog) from a single appliance, fiber-optic cable and workstation
  • Independent and stretched mode support for 2x1 configurations
  • Combine two Matrox PCIe interface cards, Matrox Extio F2208, Extio F2408, plus Extio F2408E Expander units to drive up to 16 DisplayPort and/or DVI displays, keyboard, mouse, audio and up to eight additional USB 2.0 ports at up to 1 km from the PC
  • Clone multiple displays in two separate remote locations across two fiber-optic cables, while also stretching desktops
  • Max. resolution of 2560x1600 (DisplayPort), & 1920x1200 (Digital, Analog) per display
  • Fiber-optic connection allows raw, uncompressed data to travel between the remote host system and the user-side Extio F2208 appliance, resulting in unmatched HD resolution support and uncompromised workstation performance
  • Designed for process control rooms, dispatch centers, and other mission-critical environments that require stable, reliable I/O extension technology



Overview:

  • Link Connector: Dual-LC
  • USB Ports: 1x mini USB 2.0 (Type B)
  • GPU: Matrox
  • Memory: 2 GB
  • Bus Interface: PCI Express x1 electrical and mechanical


Manufacturer Warranty: 02 Years Limited Warranty

Link Connector Dual-LC
USB Ports 1x mini USB 2.0 (Type B)
Bus Interface PCI Express x1 electrical and mechanical
GPU Matrox
Memory 2 GB
Video Resolutions 4x 2560x1600 (DisplayPort),
4x 1920x1200 (Digital, Analog)
Color Space and Chroma Sub-Sampling RGB: 8:8:8
USB Support Keyboard, mouse, touch screens and other HIDs
Maximum Distance on Fiber-Optic Cables (Point-to-Point) OM4 multi-mode (50/125 μm) - 400 meters (1312 feet)
OM3 multi-mode (50/125 μm ) - 380 meters (1247 feet)
OM2 multi-mode 50/125 μm - 150 meters (492 feet)
OM1 multi-mode 62.5/125 μm - 70 meters (230 feet)
OS1, OS2 single-mode 9/125 μm - 1 km / (3280 feet)
Cooling Fanless
Power Supply Unit External PSU
Lockable PSU Connector
Hardware Included Matrox PCIe x1 interface card
Supported Operating Systems Microsoft Windows desktop/workstation/server operating systems, and Linux (a detailed list is available here).
EMC/EMI Device Class Class A
EMC/EMI Compliance ACA
CE (EU)
FCC (US)
VCCI (Japan)
Product Dimensions 6.6 x 2.677 x 0.75 inches
