Manufacture: Aten | Model: CS22H-AT
For a smart-looking, neat and tidy work environment, ATEN’s patented all-in-one design Cable KVM Switches eliminate the bother of connecting multiple cables by consolidating keyboard, video and mouse cables into one, and building that cable right into switch.

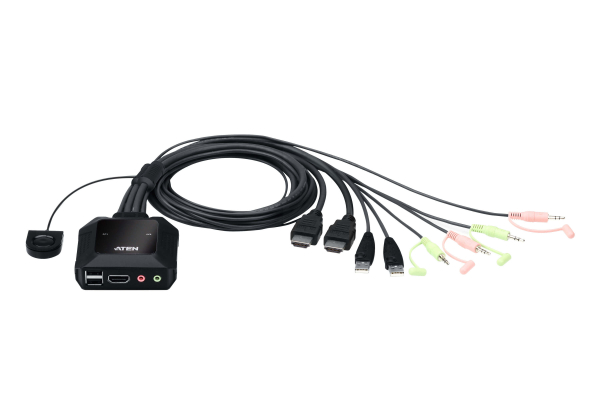

The ATEN CS22H Cable KVM Switch can instantly access two computers with a USB and HDMI console while offering superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), bringing users maximum convenience and optimum visuals.
When users want to switch between the computers, simply press the built-in remote port selector to enjoy intuitive operations. Moreover, the CS22H supports USB peripheral sharing, easily integrating data and ensuring uninterrupted data transmission.
Its compact and bus-powered design provides an efficient installation without bulky cable setups, and the newly-designed hook allows users to place the CS22H wherever they want to keep desktop tidy and well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers at the desktop in any environment.
| Computer Connections | 2 |
| Port Selection | Remote Port Selector |
| Connectors | |
| Console Ports | 1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink) |
| KVM (Computer) Ports | 2 x HDMI Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink) |
| Power (Optional) | 1 x USB Micro Type B Female |
| LEDs | |
| KVM Port (On Line /Selected) | 2 (White) |
| Cable Length | |
| KVM | 2 x 1.2 m |
| Remote Port Selector | 1.8 m |
| Emulation | |
| Keyboard / Mouse | N/A |
| Video | Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz |
| Power Consumption | DC5V:1.4W:19BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.34 kg ( 0.75 lb ) |
| Dimensions (L x W x H) | 8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
