Product Type: Thunderbolt 4 Add-on Card, Model: ASUS ThunderboltEX 4, Chipset: Intel JHL8540, Interface: PCIe 3.0 x4, Connectivity: 2x Thunderbolt 4 (USB-C), Bandwidth: 40 Gbps, Display: DisplayPort 1.4 (8K support), Power Delivery: Up to 100W Quick Charge (on Type-C_1), Daisy Chain: Up to 5 devices
We Accept
Manufacture # ASUS | Model # 90MC09P0-M0UAY0

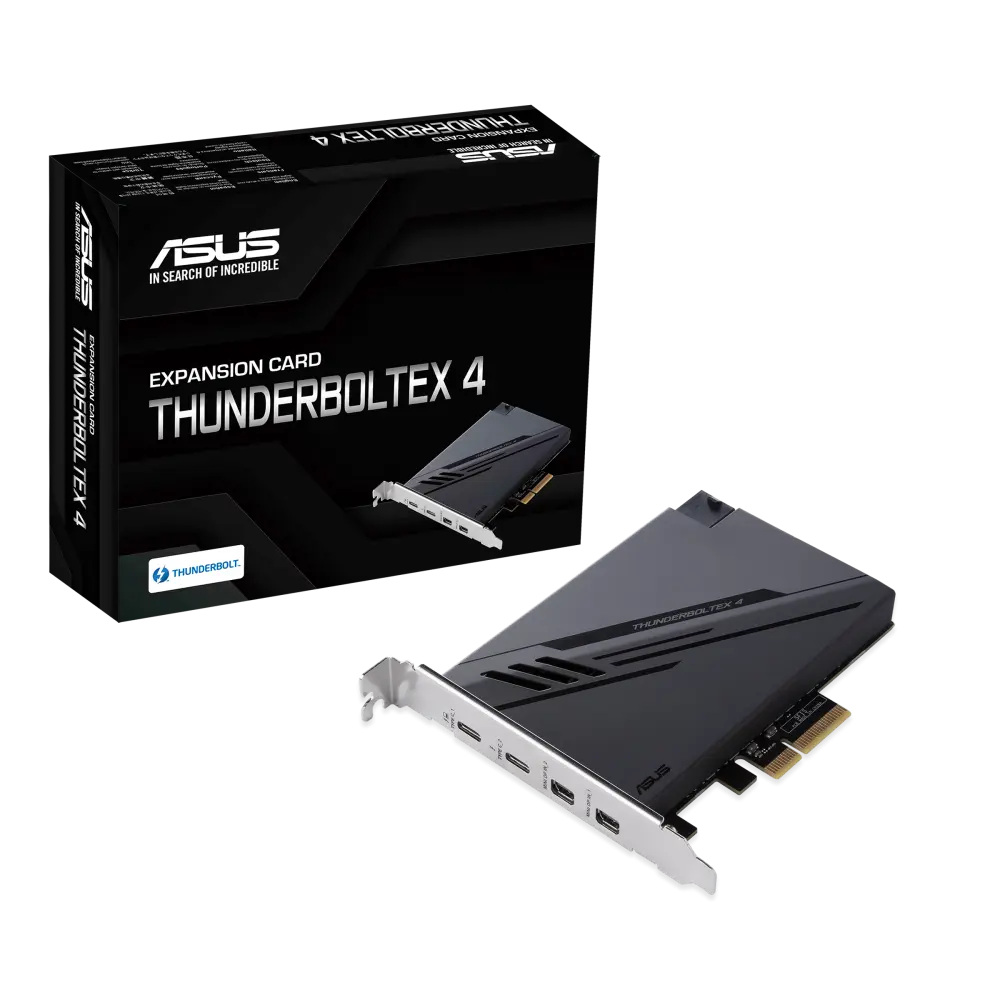

ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | ASUS ThunderboltEX |
| Model Number | ThunderboltEX 4 (90MC09P0-M0UAY0) |
| Product Type | Thunderbolt 4 / USB4 PCIe Add-on Card |
| Chipset | Intel Thunderbolt 4 JHL8540 Controller |
| Host Interface | PCIe 3.0 x4 |
| External Connectors | 2 x USB Type-C® ports (Thunderbolt™ 4 and USB4™) |
| Input Ports | 2 x Mini DisplayPort IN ports |
| Data Bandwidth | Up to 40 Gbps bi-directional |
| Video Support | DisplayPort 1.4 |
| Max Resolution | 7680 x 4320 @ 60Hz (8K Ultra HD)* |
| Daisy Chain Support | Up to five Thunderbolt devices per port |
| Quick Charge (Port 1) | Up to 100W (20V/5A) |
| Quick Charge (Port 2) | Up to 27W (9V/3A) |
| Internal Interfaces | 1 x 6-pin PCIe power connector |
| Internal Headers | 1 x USB 2.0 header, 1 x 14-1 pin Thunderbolt™ header |
| Operating System | Windows® 10 - 64 bit (and later) |
| Dimensions (L x H) | 7.1 x 4.6 inches (18.05 x 11.77 cm) |
| Compatibility | ASUS Intel 500 series and later motherboards with a 14-1 pin Thunderbolt header |
