The ZBOX PRO PI339 pico is a compact, fanless embedded solution designed for edge computing, digital signage, and IoT applications. Featuring an Intel N100 processor, 4K dual-display support, and robust connectivity, it delivers silent, energy-efficient performance in a durable 0.24L chassis.
We Accept
Manufacture: Zotac | Model: ZBPI3398GB128

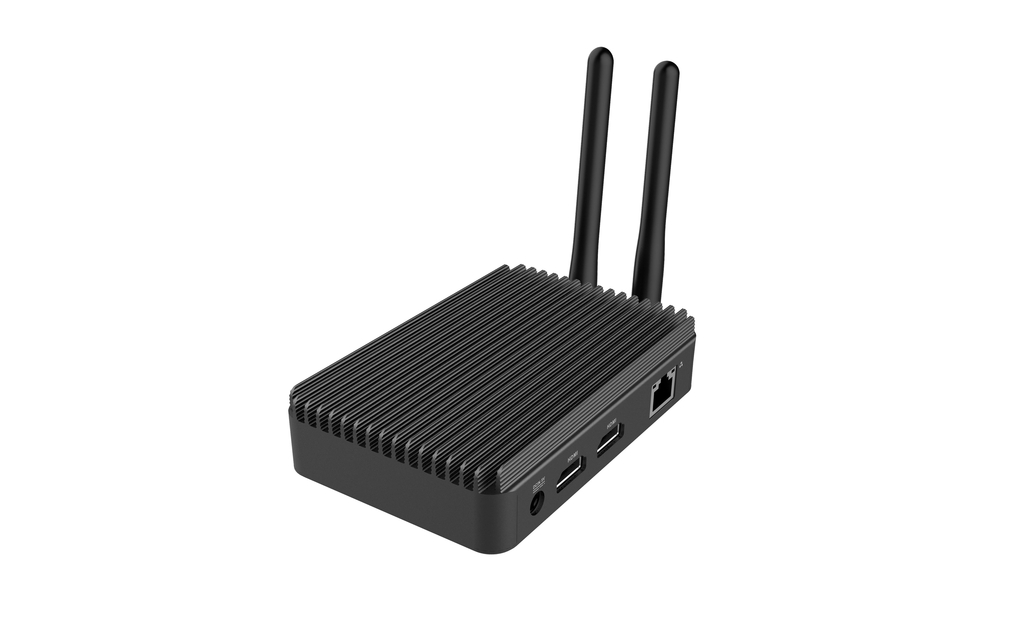

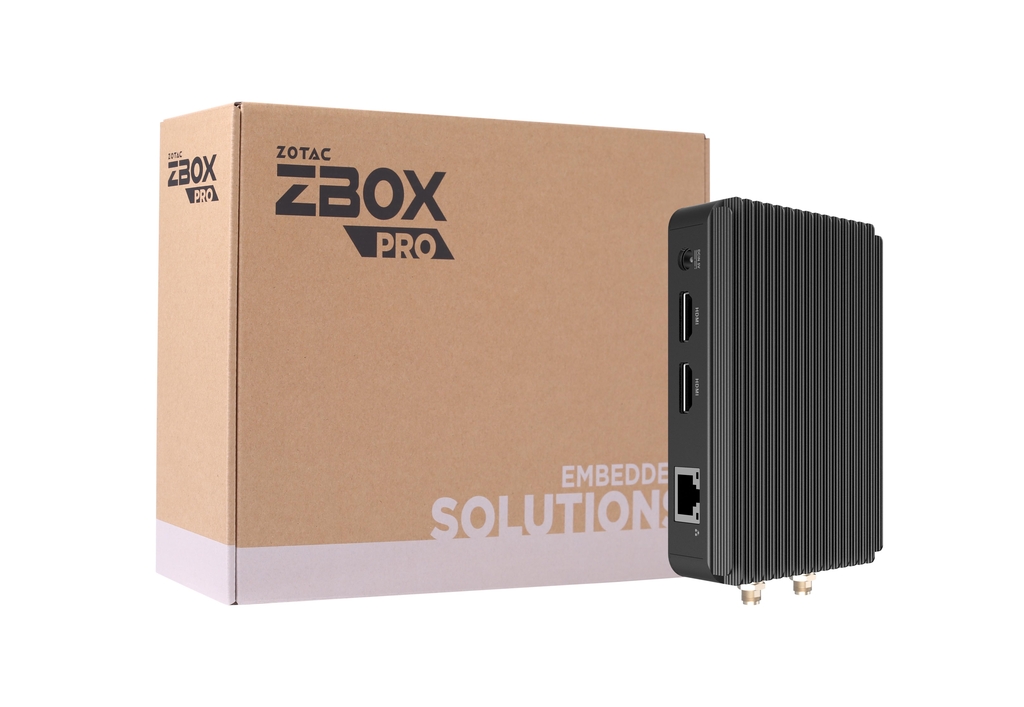

The ZOTAC ZBOX PRO PI339 pico is the smallest and most power-efficient system in the ZBOX PRO embedded series, purpose-built for IoT, industrial control, digital signage, and edge computing applications. Despite its ultra-compact 0.24-liter chassis, it offers full-sized connectivity and versatile performance features.
Powered by an Intel N100 quad-core processor and 4GB LPDDR5/X memory, the PI339 delivers reliable computing with minimal power consumption—around 18W under load. With dual HDMI 2.0 outputs, it supports 4K dual-display setups for commercial signage or monitoring tasks. The fanless, passively cooled design ensures silent operation and long-term durability, making it ideal for deployments in space-constrained or noise-sensitive environments.
The system includes Gigabit LAN, WiFi 6, Bluetooth 5.2, and an M.2 SSD slot for flexible storage. It supports Windows 10/11 IoT and Ubuntu 20.04.5 LTS, with added features such as Intel PTT TPM 2.0 and a hardware watchdog timer for industrial reliability.

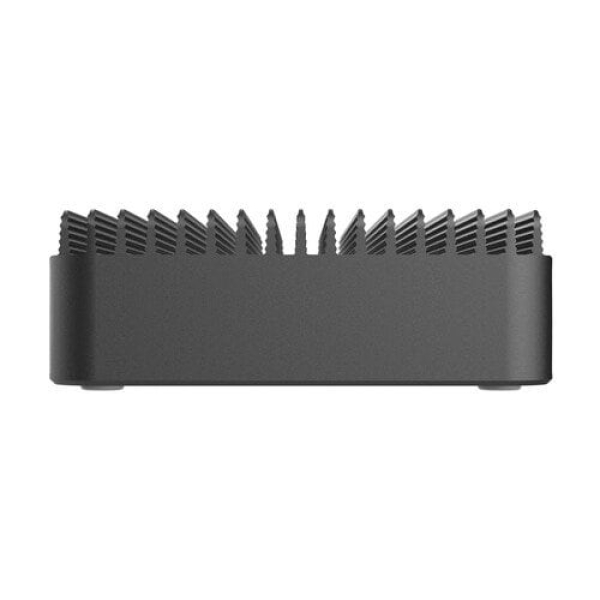

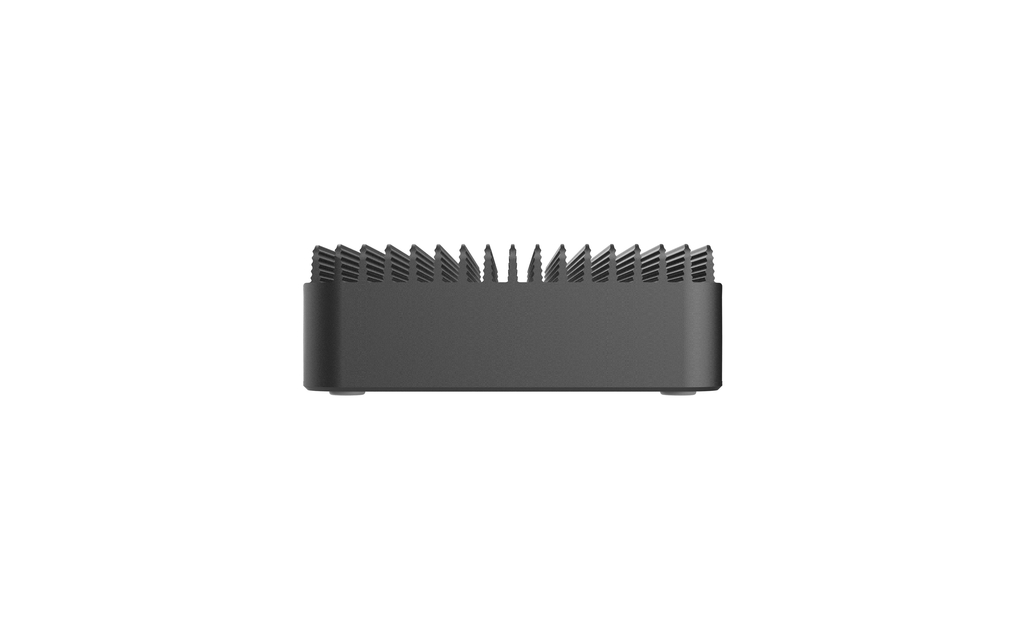

Fanless, silent operation with durable metal enclosure
Ultra-compact 0.24L chassis with just 27.1mm height
Intel N100 quad-core processor for efficient computing
4GB LPDDR5/X onboard memory for multitasking

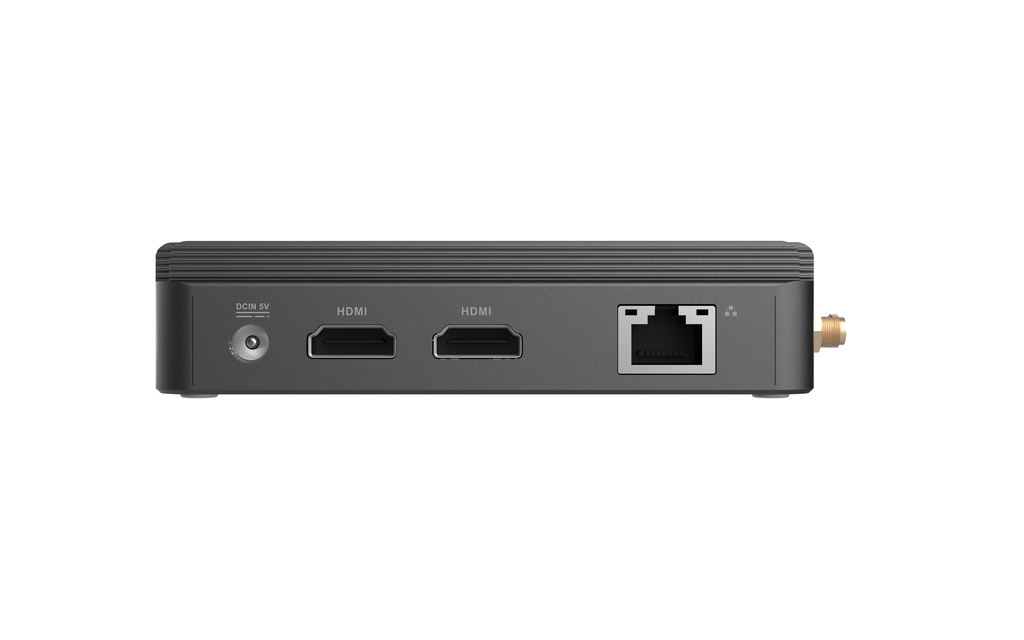

Dual HDMI 2.0 ports with 4K resolution support
M.2 M-Key slot supporting SATA III or NVMe SSDs

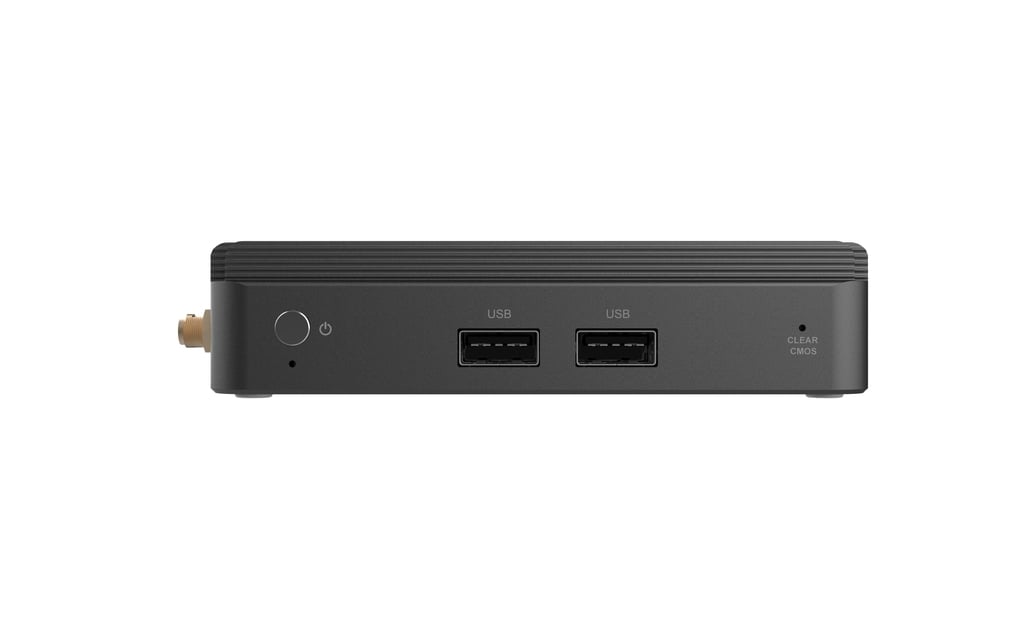

Full-sized I/O: USB 3.1, Gigabit Ethernet, WiFi 6, Bluetooth 5.2
Supports Windows 10/11 IoT and Ubuntu Linux
Hardware Watchdog Timer for industrial stability
Intel PTT TPM 2.0 for secure computing
| Category | Details |
|---|---|
| Product Name | ZOTAC ZBOX PRO PI339 pico |
| Model Number | ZP-PI339 |
| Processor | Intel Processor N100 (Quad-Core) |
| Memory | 4GB LPDDR5/X (onboard) |
| Storage Expansion | 1 x M.2 M-Key (SATA III / PCIe Gen 3 x4) |
| Graphics Output | 2 x HDMI 2.0 (Up to 4K @ 60Hz) |
| USB Ports | 2 x USB 3.1 Type-A |
| Networking | 1 x Gigabit LAN |

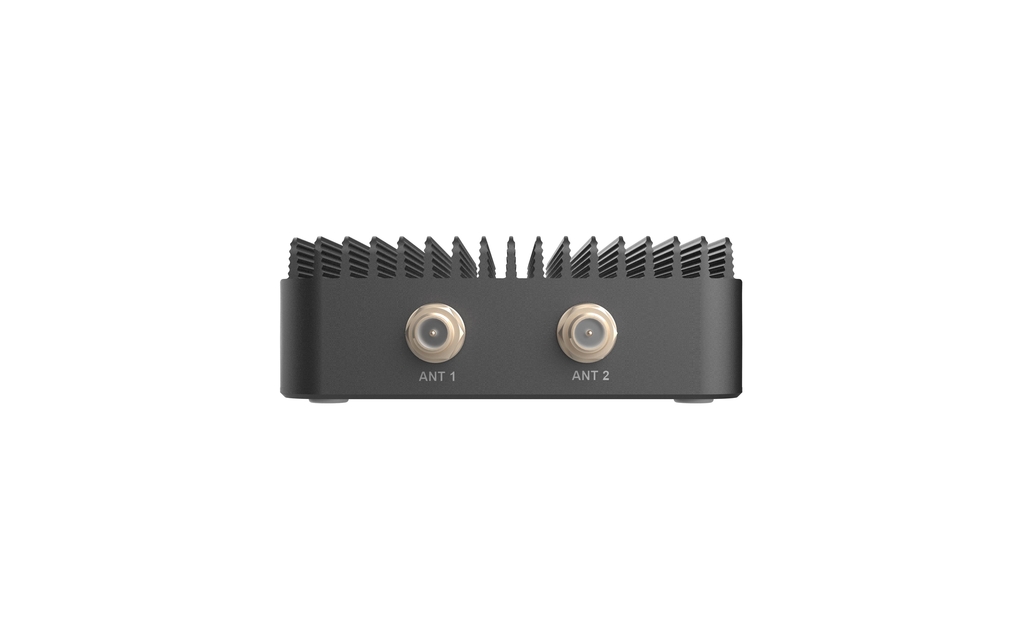

| Wireless Connectivity | WiFi 6, Bluetooth 5.2 |
| Operating System Support | Windows 10/11 IoT ENT LTSC, Ubuntu 20.04.5 LTS |
| Cooling | Passive (Fanless, Silent) |
| Chassis Material | Metal |
| Watchdog Timer | Yes |
| TPM Support | Intel PTT TPM 2.0 |
| Power Consumption | Approx. 18W under load |
| Dimensions | 0.8 x 0.9 x 15.46 cm (Approx. 0.24L volume) |
| Height | 27.1 mm |
