The ZBOX PRO PI336 pico PLUS is a compact, fanless embedded system powered by an Intel Celeron N6211 processor with 8GB LPDDR4X memory and 128GB eMMC storage. Ideal for digital signage, IoT, and industrial control, it offers dual 4K display support, robust connectivity, and silent operation in a 0.24L chassis.
100% Guarantee Safe Checkout
Description
Manufacture: Zotac | Model: ZBOX-PI336-PLUS PICO

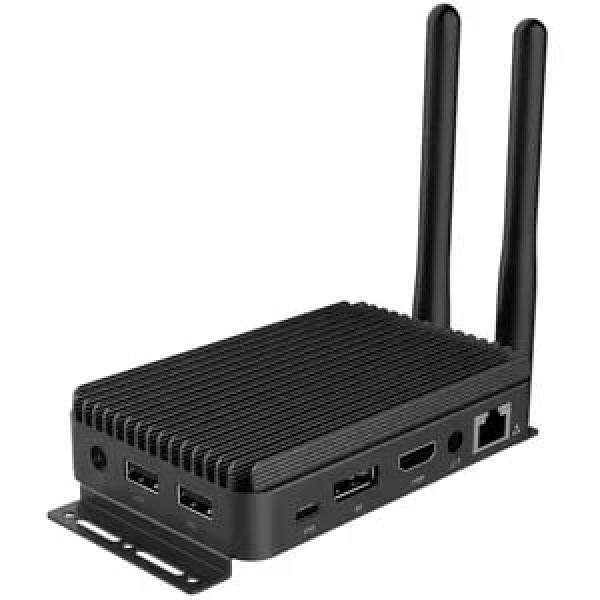

The ZOTAC ZBOX PRO PI336 pico PLUS (ZP-PI336-P) is an ultra-compact embedded PC engineered for low-power, high-efficiency deployment in commercial and industrial environments. Its fanless, passively cooled design ensures silent operation and reliable performance in space-constrained installations like digital signage, IoT gateways, industrial control, and edge computing.
Powered by a dual-core Intel Celeron N6211 processor, 8GB of onboard LPDDR4X memory, and 128GB eMMC 5.1 flash storage, the PI336 pico PLUS provides energy-efficient performance with power consumption around just 12W under load. It supports dual 4K displays via HDMI 2.0 and DisplayPort 1.2, making it a compact yet capable solution for high-resolution visual applications.
With Gigabit LAN, WiFi 6E, Bluetooth 5.2, USB 3.1 including Type-C, and a 3-in-1 card reader, this unit delivers full-sized, versatile connectivity. It is compatible with Windows 11/10/10 IoT and Ubuntu 20.04.3 LTS, offering flexible OS deployment options for various industries. Additional reliability features include a hardware watchdog timer for system recovery and long-term stability.
Compact fanless design for silent and durable operation
Intel Celeron N6211 dual-core processor with up to 3.0GHz
8GB onboard LPDDR4X memory and 128GB eMMC 5.1 storage
Dual 4K display support via HDMI 2.0 and DisplayPort 1.2
USB 3.1 ports including one USB Type-C for modern connectivity
Gigabit Ethernet, WiFi 6E, and Bluetooth 5.2 for robust networking
Built-in 3-in-1 card reader (microSD/SDHC/SDXC)
Supports Windows 10/11, Windows 10 IoT, and Ubuntu 20.04.3 LTS
Hardware watchdog timer for system stability in embedded use cases
| Category | Details |
|---|---|
| Product Name | ZOTAC ZBOX PRO PI336 pico PLUS |
| Model Number | ZP-PI336-P |
| Processor | Intel Celeron N6211 (2 cores, 1.2GHz up to 3.0GHz, 1.5MB cache) |
| Chipset | Intel |
| Memory | 8GB LPDDR4X (onboard) |
| Storage | 128GB eMMC 5.1 flash (onboard) |
| Graphics Engine | Intel UHD Graphics (Integrated) |
| Video Outputs | 1 x HDMI 2.0 (4096x2160@60Hz) 1 x DisplayPort 1.2 (4096x2160@60Hz) |
| Dual Display Support | Yes |
| USB Ports | 2 x USB 3.1 Type-A 1 x USB 3.1 Type-C |
| Networking | 1 x Gigabit Ethernet LAN |
| Wireless | WiFi 6E, Bluetooth 5.2 |
| Card Reader | 3-in-1 (microSD / SDHC / SDXC) |
| Cooling | Passive, fanless |
| Power Consumption | Approx. 12W under load |
| Operating System Support | Windows 10 / 11 / 10 IoT ENT LTSC, Ubuntu 20.04.3 LTS |
| Watchdog Timer | Yes |
| Chassis Volume | Approx. 0.24L |
