Name: Zebra 74M ZD611 Healthcare Color Touch LCD 300 dpi USB Ethernet BTLE5 ZD6AH23-T0PE00EZ
Brand: Zebra
SKU: ZD6AH23-T0PE00EZ
Price: 1004 AUD
Availability: InStock

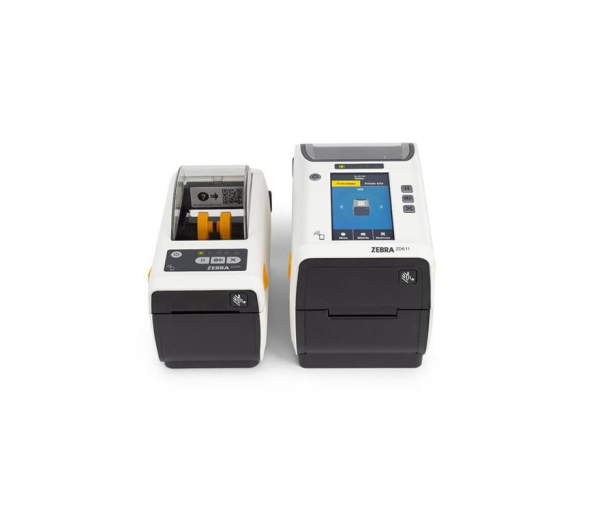

Zebra 74M ZD611 Healthcare Color Touch LCD 300 dpi USB Ethernet BTLE5 ZD6AH23-T0PE00EZ

SKU : ZD6AH23-T0PE00EZ

Brand : Zebra

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # Zebra | Model # ZD6AH23-T0PE00EZ

Zebra’s ZD611 desktop printers, featuring an innovative new architecture to power our ever-expanding printer capabilities and software. They offer unmatched security that’s constantly evolving to safeguard your sensitive data and shield you from cyberattacks. And, add enhanced features, connectivity and media-handling options whenever you’re ready. The full-color LCD touch display with intuitive menu – standard on all thermal transfer models – and increased remote-management capabilities make ZD611 printers easy to use. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security.

Features:

Print methods: Thermal Transfer or Direct Thermal
ZPL and EPL programming languages
4.3" full color touch LCD (resolution: 480 wide x 272 high)with 3-button user interface (thermal transfer model)
5 status icon, 3 button user interface (direct thermal model)
Ethernet, USB 2.0, USB Host
Real Time Clock (RTC)
Media dancer for excellent print quality (thermal transfer model)
OpenACCESS™ for easy media loading
Dual-wall frame construction

Overview:

Operating System: Link-OS printer operating system
Resolution: 300 dpi/12 dots per mm (optional)
Memory: 512 MB Flash; 256MB DDR3 SDRAM
Maximum Print Width: 2.13 in./54 mm
Maximum Print Speed: 6 in./152 mm per second
Firmware: ZPL II; EPL 2; XML; ZBI; PDF Direct
Ribbon Outside Diameter: 1.34 in./34 mm (74 m)
Ribbon Standard Length: 243 ft./74 m

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Operating System	Link-OS® printer operating system
Resolution	300 dpi/12 dots per mm (optional)
Memory	512 MB Flash; 256MB DDR3 SDRAM
Maximum Print Width	2.13 in./54 mm for 300 dpi
Maximum Print Speed	6 in./152 mm per second (300 dpi)
Media Sensors	Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware	ZPL II; EPL 2; XML; ZBI; PDF Direct
Label Length	Minimum: 0.25 in./6.35 mm Maximum: 39.0 in./991 mm
Media Width	Minimum: 0.585 in./15 mm Maximum: 2.25 in./57 mm
Media Roll Size	Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1 mm, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters
Media Thickness	0.024 in./0.06 mm min.; 0.0075 in./0.1905 mm max. (tear-off mode only)
Media Types	Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter	1.34 in./34 mm (74 m)
Ribbon Standard Length	243 ft./74 m
Ribbon Ratio	1:1 ribbon to media
Ribbon Width	1.3 in./33 mm - 2.24 in./58 mm
Ribbon Core I.D.	0.5 in./12.7 mm
Operating Temp.	40° to 105° F/4.4° to 41° C
Storage Temp.	-40° to 140° F/-40° to 60° C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Electrical	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply
Healthcare	Available in direct thermal and thermal transfer, our healthcare models include white color scheme, healthcare-compliant power supply, disinfectant-ready, easy-to-clean plastics and sealed button interface, and UV-resistant housing
RFID	Available in RFID, supports UHF EPC Gen 2 and RAIN RFID protocols, uses Adaptive Encoding Technology and Zebra’s RE40 RFID Reader/Encoder
Linerless	Linerless option with cutter - direct thermal model only
Media Handling	Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (factory or field installable)
Communications	Field installable RS-232 auto-sensing Serial; Factory installed or field installable wireless dual radio – 802.11ac Wi-Fi and Bluetooth Classic 4.2
Battery	Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Real Time Clock	Real time clock included as standard on network connected models
Keyboard Display Unit	ZKDU keyboard display unit for stand-alone printing solution
Mounting Adapter Bracket	Enable printer to be mounted in same location as LP/TLP2824 Plus printer
Barcode Ratios	2:1 and 3:1
1D Barcodes	Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Barcodes	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics	16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM
Screen Size	10.9 cm (4.3")
Display Screen Type	LCD
Weight (Approximate)	1.63 kg
Height	169.2 mm
Width	138.7 mm
Depth	242.9 mm
