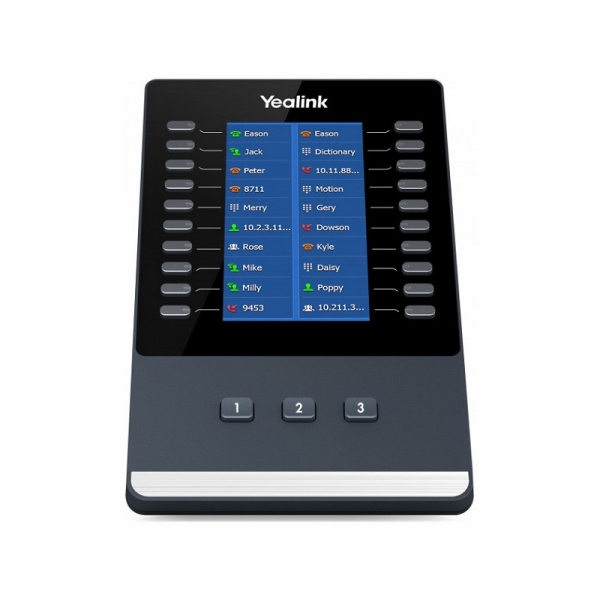

Yealink Color Expansion Module for T43U/T46U/T48U IP Phones

Description

Manufacture # Yealink | Model # EXP43

The Yealink EXP43 Color Expansion Module is designed to expand the functional capability of your Yealink T43U/T46U/T48U IP phones by adding 60 multi-functional line keys such as BLF, speed dial, call forward, transfer, call park, call pickup, and more. Yealink's T43U/T46U/T48U allow you to daisy-chain up to (3) EXP43 Expansion modules giving you up to 180 buttons. Installation is simple - just connect the included USB cable to the phone's USB port. After the connection between the expansion module and the IP phone is established, the remaining USB port on the back of EXP43 can also be used for other USB peripherals, like USB headsets, WiFi dongles, and more.

Features:

• 20 Physical line buttons with dual-color LEDs
• 3 page buttons give users up to 60 buttons per console
• Up to (3) EXP43 can be daisy-chained to each T43U/T46U/T48U IP Phone
• For support of (2) or (3) Expansion Modules an external Yealink PS5V2000US power adapter is required
• 4.3" 272 x 480-pixel color screen
• Color icons for rich visual experience
• Stand with 2 adjustable angles
• Wall Mountable (bracket available soon).

Overview:

• Model: EXP43
• Phone Type: Expansion Module (DSS/BLF)
• Connection: USB-A to Yealink T43U/T46U/T48U IP Phones
• Display: 4.3" 272x480-pixel color display with backlight

Manufacturer Warranty: 01 Year Limited Warranty

EXP43

The Yealink EXP43 Color Expansion Module for Yealink T43U/T46U/T48U IP phones, is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 4.3-inch color-screen LCD, giving you a vivid visual experience. In addition, it provides you with a simple user interface and advanced call handling capabilities. For example, three pages of 20 flexible button shown on the display can be programmed up to 60 various features. The functionality of Yealink T43U/T46U/T48U IP phones will also be extended by the EXP43, you can set the provided multifunctional line keys as BLF, speed dial, call forward, transfer, call park, call pickup, etc. The Yealink EXP43 Color Expansion Module is an ideal solution for receptionists, administrative assistants and contact center workers and gives you the ability to monitor contacts and manage a large volume of calls with ease.

Key Features

• User-friendly Structure Design
• Intuitive Visualization
• High Expansibility
