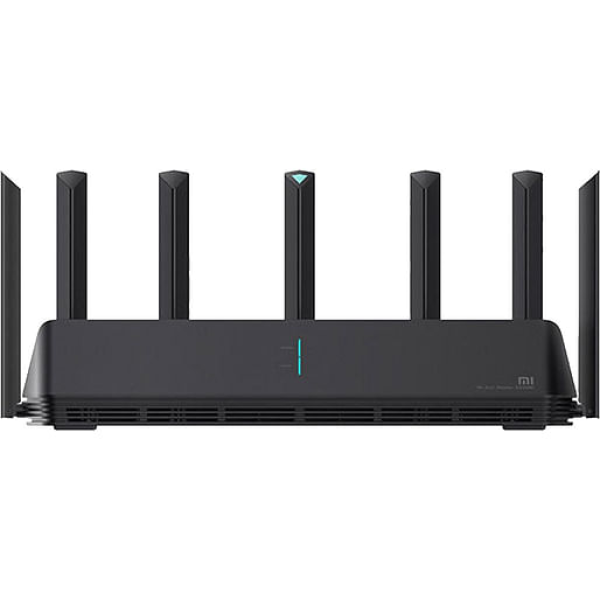

Xiaomi Mi AX3600 Wi-Fi 6 Dual Band AIoT Router Black

Sku: 29010

Availability: Out of Stock

Brand: XIAOMI

Category: Routers-Gateways

$228.80 $148.50 -54% OFF

Processor: IPQ8071A 4-core A53 1.4 GHz CPU, ROM: 256MB, Memory: 512MB, Dual band: 2.4 GHz and 5 GHz, 02 Years Limited Warranty, 29010.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Xiaomi | Model # 29010



Wi-Fi 6 (802.11ax) is the latest generation in Wi-Fi standards. Compared to the previous generation of Wi-Fi 5 (802.11ac) in terms of transfer rates, coverage and data latency,it has been vastly improved. Especially when multiple end devices are connected at the same time, the Wi-Fi 6 router can significantly reduce and lower end-device latency and unresponsiveness.



Features:

  • The Mi AIoT Router AX3600 offers two bands of 2.4 GHz and 5 GHz, each with 802.11ax technology and no mutual interference. The two bands offer a combined dual-band wireless speed of up to 2976 Mbps*. The 2.4 GHz frequency band features longer transmission for better coverage and better wall-penetrating performance. The 5-GHz frequency band provides low interference and high speed for smooth HD video playback and smoother experience when playing large online games.
  • Two and four external high-performance signal amplifiers (PA and LNA) are installed in the 2.4-GHz band and 5-GHz band respectively. The PA (Power Amplifier) effectively increases the signal transmitting power, allowing the router to transmit signals further and stronger through walls. The LNA (Low Noise Amplifier) increases the signal reception sensitivity, allowing the router to receive a weaker signal from further away.
  • A flagship router is a complex environment that must be capable of supporting multiple people playing games, family gatherings, and house parties with multiple devices. The AX3600 has 512 MB of memory.and supports up to 248 devices connected simultaneously, making it the simple solution for a variety of locations.
  • Equipped with an "AIoT Smart Antenna," open the Mi Home app to discover uninitialized Mi smart devices*. Connect to the network and access a wide range of smart features with the touch of a button. You can help your parents configure their new devices quickly, even when you're away from home.
  • Enjoy high-speed Wi-Fi 6 throughout the house. Instead of dealing with dead spots from a single router, multiple mesh groups* can easily handle all kinds of complex home layouts to seamlessly cover the house. Plus, you can enjoy high-speed Wi-Fi 6 everywhere you go with support for the 802.11k/v protocol. Actual experience depends on the actual environment and user end device capability.


Overview:

  • Processor: IPQ8071A 4-core A53 1.4 GHz CPU
  • ROM: 256MB
  • Memory: 512MB
  • Dual band: 2.4 GHz and 5 GHz



Manufacturer Warranty: 02 Years Limited Warranty

Hardware configuration :-
Processor IPQ8071A 4-core A53 1.4 GHz CPU
Network processing unit Dual-core 1.7 GHz NPU
ROM 256MB
Memory 512MB
2.4G Wi-Fi 2 × 2 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 574 Mbps)
5G Wi-Fi 4 × 4 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 2402 Mbps)
Product antenna 6 external high-gain antennas + 1 external AIoT antenna
Product heat dissipation Natural heat dissipation
Total ports 1× 10/100/1000M self-adaptive WAN port (Auto MDI/MDIX)
3× 10/100/1000M self-adaptive LAN ports (Auto MDI/MDIX)
LED indicator light 7× (SYSTEM light ×1, INTERNET light ×1, LAN light ×4, AIoT status light ×1)
System reset button
Power input port
Protocol standards IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
Wireless specifications :-
Dual band 2.4 GHz and 5 GHz
Modulation 11b: DSSS: DBPSK(1 Mbps), DQPSK (2 Mbps), CCK(5.5/11 Mbps)
11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 4 streams)
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
Rate set: MCS0 to MCS11 (supports 4 streams)
Software specifications :-
Operating system Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT
Wireless security WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention
Management applications Supports web, Android, iOS
Security Access control (blacklist, whitelist), guest network, DoS, SPI firewall, IP and MAC address binding, IP and MAC filtering
Product accessories :-
User manual
Networking cable
Product power supply 1× (12 V/2 A)
Working Environment :-
Working environment Temperature: 0°C to 40°C
Operating humidity 10%–90% RH (no condensation)
Storage temperature -40°C to +70°C
Storage humidity 5%–90% RH (no condensation)
Package contents :-
Whats in the box Main body
User Manual
Power cable
Networking cable
