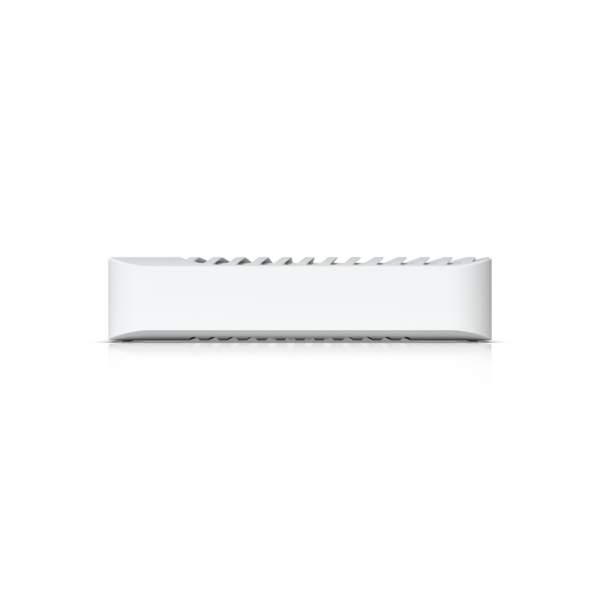

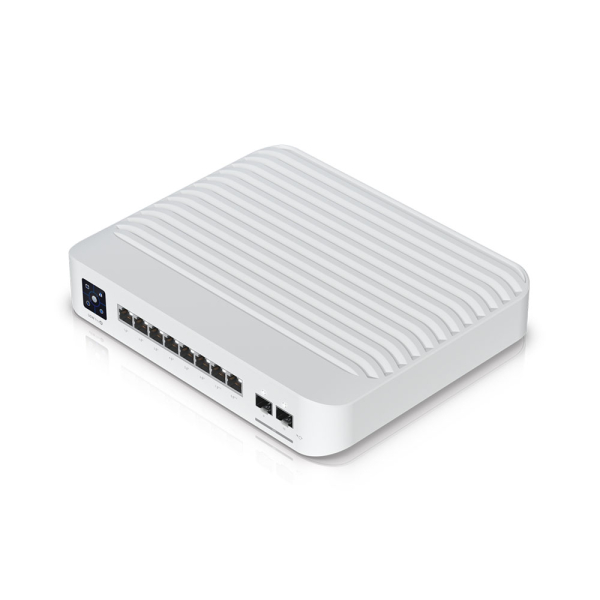

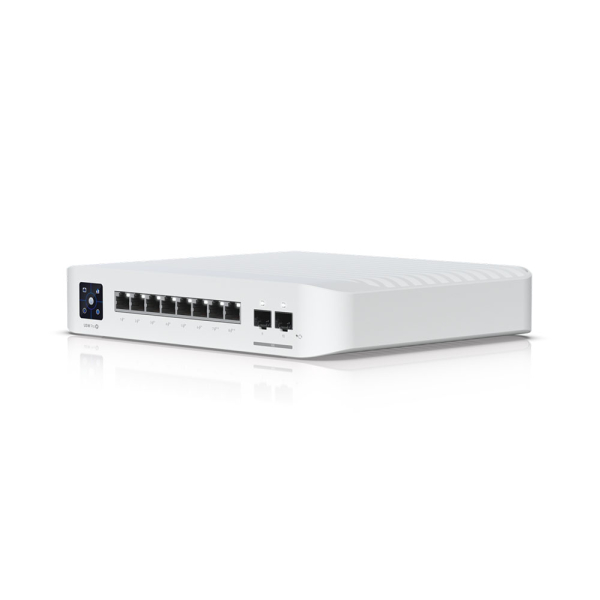

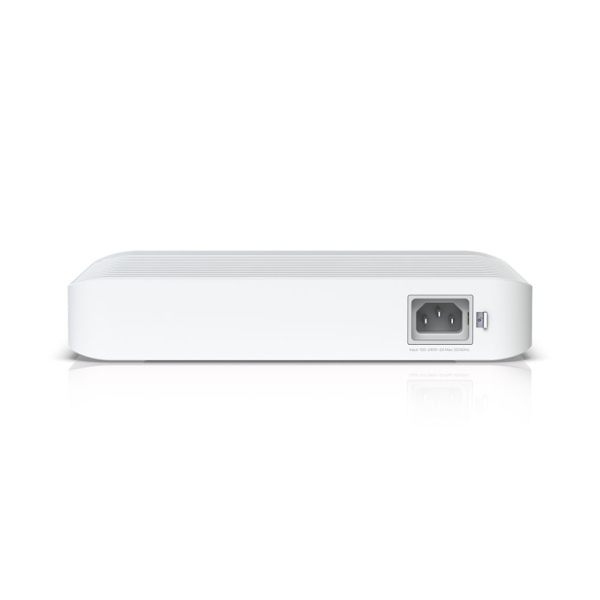

Ubiquiti USW-Pro-8-POE Professional 8 PoE UniFi Gigabit Switch with PoE++ and SFP+

SKU : USW-Pro-8-PoE
Brand : Ubiquiti
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Enclosure materials: Polycarbonate, metal, Mount material: Polycarbonate, Management interface: Ethernet In-Band, Networking interface: (8) GbE RJ45 ports, (2) 10G SFP+ ports, Total non-blocking throughput: 28 Gbps, Switching capacity: 56 Gbps, LCM display: (1) 1.3" touchscreen, LEDs: RJ45 ports: link/activity, Warranty: 01 Year, USW-Pro-8-PoE.
Ask a question about this product
$589.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Ubiquiti | Model # USW-Pro-8-PoE



The Ubiquiti USW-Pro-8-PoE is an 8-port managed Layer 3 Gigabit switch with PoE+ and PoE++ output designed for small businesses and home users who need a powerful and versatile switch for their network.



Features:

  • An 8-port, Layer 3 switch with PoE+ and PoE++ output.
  • (6) GbE PoE+ ports
  • (2) GbE PoE++ ports
  • (2) 10G SFP+ ports
  • 120W total PoE availability



Overview:

  • Enclosure materials: Polycarbonate, metal
  • Mount material: Polycarbonate
  • Management interface: Ethernet In-Band
  • Networking interface: (8) GbE RJ45 ports, (2) 10G SFP+ ports
  • Total non-blocking throughput: 28 Gbps
  • Switching capacity: 56 Gbps
  • LCM display: (1) 1.3" touchscreen
  • LEDs: RJ45 ports: link/activity



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Mechanical :-
Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.1 kg (4.6 lb)
Enclosure materials Polycarbonate, metal
Mount material Polycarbonate
Hardware :-
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 28 Gbps
Switching capacity 56 Gbps
Power method Universal input, 100-240V AC, 2A Max.
Power supply AC/DC, internal
Supported voltage range 100-240V AC
Max. power consumption 30W (Excluding PoE output)
Total available PoE 120W
Max. PoE wattage per port by PSE PoE: 15W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44-57V
PoE+: 50-57V
PoE++: 50-57V
LCM display (1) 1.3" touchscreen
LEDs RJ45 ports: link/activity
Button Factory reset
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features :-
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Application Requirements :-
UniFi Network Version 7.5.176 and later
