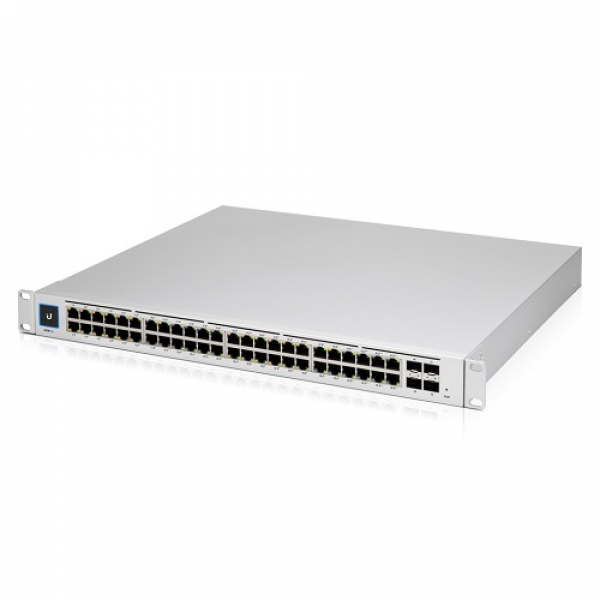

Sku: USW-Pro-48-POE
Brand: Ubiquiti
Category: Switches
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
We Accept
Manufacture # Ubiquiti | Model # USW-Pro-48-POE
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Dimensions | 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72") |
| Weight | Without mounting brackets: 6.25 kg (13.78 lb) With mounting brackets: 6.34 kg (13.98 lb) |
| Enclosure material | SGCC steel |
| Networking interface | (48) 10/100/1,000 RJ45 ports (4) 1/10G SFP+ Ethernet ports |
| Management interface | Ethernet In-Band |
| Total non?blocking throughput | 88 Gbps |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.944 Mpps |
| Power method | Universal input, 100—240V AC/50-60 Hz USP RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A |
| Power supply | AC/DC, internal, 660W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 60W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| SFP+ | Link/activity |
| Total available PoE | 600W |
| PoE interfaces Ports 1-40 Ports 41-48 |
PoE/PoE+ (pins 1, 2+; 3, 6-) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE wattage per port by PSE PoE+ PoE++ |
32W 64W |
| Voltage range PoE mode | 44—57V |
| Voltage range PoE+ mode | 50—57V |
