Enclosure material: SGCC steel, Management interface: Ethernet In-Band, Total non-blocking throughput: 380 Gbps, Switching capacity: 760 Gbps, Max. power consumption: 100W.
We Accept
Manufacture # Ubiquiti | Model # USW-Pro-Aggregation

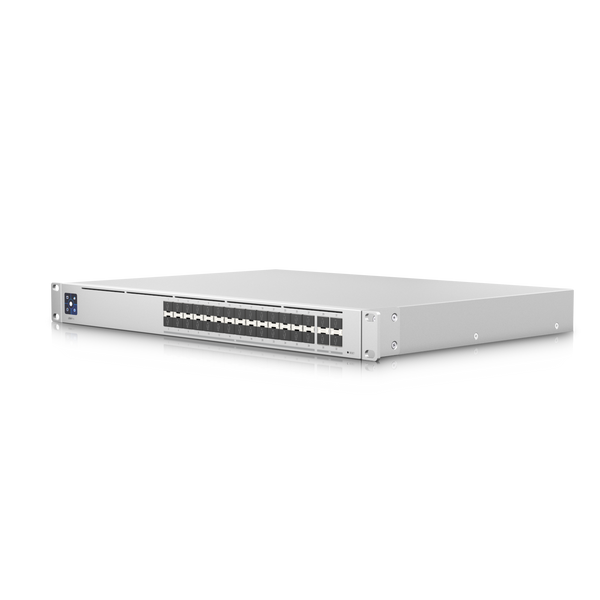

The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM colour touchscreen that concisely displays key system and connection insights.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Weight | Without mounting brackets: 4.6 kg (10.14 lb) With mounting brackets: 4.7 kg (10.36 lb) |
| Enclosure material | SGCC steel |
| Networking interface | (28) 1/10G SFP+ ports (4) 1/10/25G SFP28 ports* *The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps. |
| Management interface | Ethernet In-Band |
| Total non-blocking throughput | 380 Gbps |
| Switching capacity | 760 Gbps |
| Forwarding rate | 565.44 Mpps |
| Max. power consumption | 100W |
| Power method | (1) Universal AC input, 100—240V AC, 2A Max, 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Services | SMB Layer 3 10/25 G Fiber switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" LCM color touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading |
| LEDs | SFP28/SFP+: White, link, activity |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| System | Status |
| SFP28/SFP+ | Link/activity |
