Sku: USW-24
Brand: Ubiquiti
Category: Switches
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
Enclosure material: SGCC steel, Management interface: Ethernet In-Band, Total non-blocking line rate: 26 Gbps, Power method: 100—240V AC, 50/60 Hz, universal input.
We Accept
Manufacture # Ubiquiti | Model # USW-24

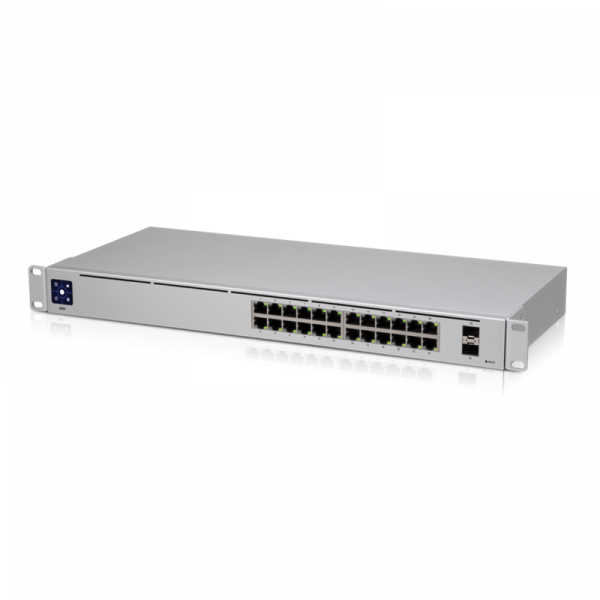

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Dimensions | 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72") |
| Weight | Without mounting brackets: 2.7 kg (5.95 lb) With mounting brackets: 2.8 kg (6.15 lb) |
| Enclosure material | SGCC steel |
| Networking interface | (24) 10/100/1,000 MbE RJ45 ports (2) 1G SFP Ethernet ports |
| Management interface | Ethernet In-Band |
| Total non-blocking line rate | 26 Gbps |
| Power method | 100—240V AC, 50/60 Hz, universal input |
| Power supply | AC/DC, internal, 36W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 25W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP | Link/activity |
