Ubiquiti UniFi Managed Switch Enterprise 48 PoE

SKU : USW-Enterprise-48-PoE
Brand : Ubiquiti
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Ubiquiti USW-Enterprise-48-PoE UniFi Switch Enterprise 48 PoE, Total Non-Blocking 160 Gbps, Switching Capacity 320 Gbps, Forwarding Rate 238.095 Mpps, Power AC/DC, Internal, 100-240V, 10A Max, Interface (48) 100MbE/1GbE/2.5GbE RJ45 port, SFP+ Interfaces (4) 1/10G SFP+ ports, PoE Interfaces (48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), Button Factory Reset. The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply.
Ask a question about this product
$3,122.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Ubiquiti | Model # USW-Enterprise-48-PoE

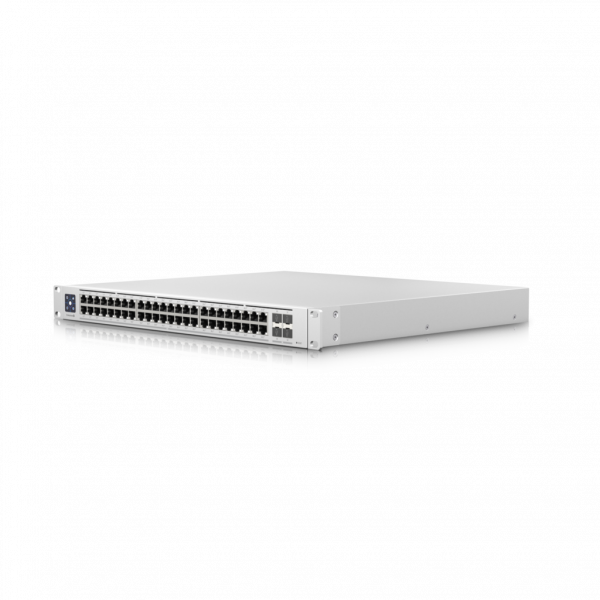

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.



Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.



Features:

  • (1) 1.3" LCM color touchscreen with AR switch management
  • (48) 2.5GbE, 802.3at PoE+ RJ45 ports
  • (4) 10G SFP+ ports
  • (1) USP RPS DC input
  • 720W total PoE supply
  • Layer 3 switching features.



Overview:

  • Total Non-Blocking Throughput: 160 Gbps
  • Switching Capacity: 320 Gbps
  • Forwarding Rate: 238.095 Mpps
  • Max Power Consumption (Excluding PoE Output): 150W



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Dimensions 442 x 44 x 400 mm (17.4 x 1.7 x 15.7")
Weight Without Mount: 6.2 kg (13.67 lb)
With Mount: 6.3 kg (13.89 lb)
Enclosure Material SGCC Steel
Mount Material SGCC Steel
Total Non-Blocking Throughput 160 Gbps
Switching Capacity 320 Gbps
Forwarding Rate 238.095 Mpps
Max Power Consumption (Excluding PoE Output) 150W
Power Method (1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
(1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
Power Supply AC/DC, Internal, 100-240V, 10A Max.
Management Interface Ethernet In-Band
Networking Interfaces (48) 100MbE/1GbE/2.5GbE RJ45 port
SFP+ Interfaces (4) 1/10G SFP+ ports
PoE Interfaces (48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Total Available PoE 720W
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
LCM Display (1) 1.3" LCM color touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Button Factory Reset
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
Ethernet White: Link or Activity
SFP+ White: Link or Activity
