Ubiquiti UFP-VIEWPORT Unifi Protect Viewport Poe Hdmi Adapter, Interface 10/100/1000 Mbps RJ45 Ethernet Port, Max. Power Consumption 9.5W, Power 802.3af PoE, Bluetooth-5, Antenna Gain 2 dB, Max. Surge Discharge 1500A (8/20 µs) Power, Clamping Protection 11V Data, 60V Power, Peak Pulse Current 36A (10/1000 µs) Data. The UniFi Protect ViewPort PoE from Ubiquiti Networks enables users to view their UniFi Protect camera feeds on an HDMI display (available separately). Powered by Gigabit PoE, this device connects.
We Accept
Manufacture # Ubiquiti | Model # UFP-VIEWPORT

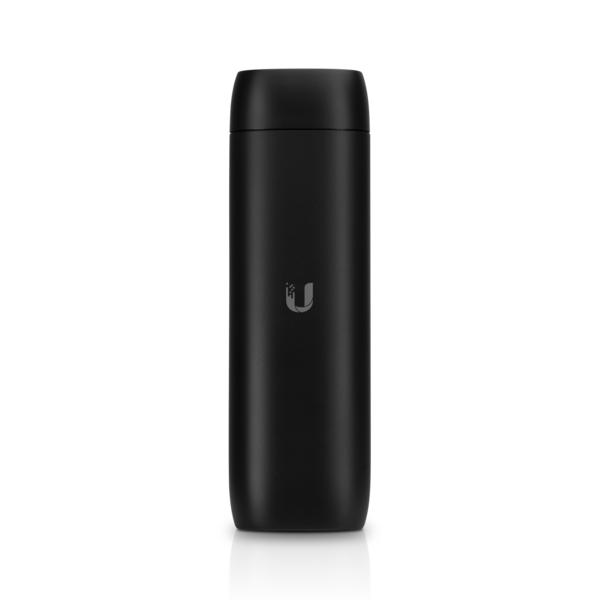

The UniFi Protect ViewPort PoE from Ubiquiti Networks enables users to view their UniFi Protect camera feeds on an HDMI display (available separately). Powered by Gigabit PoE, this device connects to the network hosting your cameras and uses HDMI to connect to an external display. HDMI video output is up to 4K UHD at 30 fps. Up to 16 IP cameras can be displayed simultaneously.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Dimensions | 157 x 52 x 37 mm (6.18 x 2.05 x 1.46") |
| Weight Without Mount: | 230 g (8.11 oz) |
| With TV Mount | 252 g (8.89 oz) |
| Mount Material | Polycarbonate |
| Processor | The Qualcomm® QCS605 SoC |
| Memory Information | 4GB Low Power DDR4X |
| Management Interface | UniFi Protect |
| Networking Interface | 10/100/1000 Mbps RJ45 Ethernet Port |
| Max. Power Consumption | 9.5W |
| Power Supply | 802.3af PoE |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 20 to 80% Noncondensing |
| Button | Factory Reset |
| Bluetooth | 5 |
| Antennas | Bluetooth |
| Antenna Gain | 2 dB |
| Certications | FCC, IC, CE |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
