Sku: USW-16-POE
Brand: Ubiquiti
Category: Switches
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
We Accept
Manufacture # Ubiquiti | Model # USW-16-POE

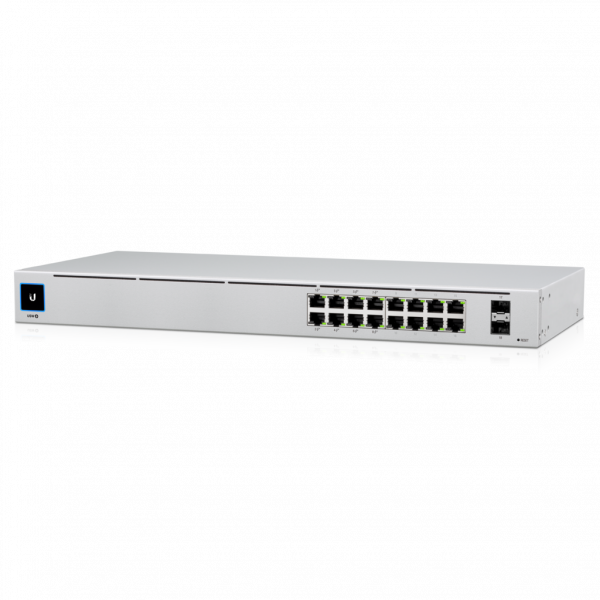

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fibre uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Dimensions | 424.4 x 200 x 43.7 mm (16.7 x 7.9 x 1.7") |
| Weight | Without mounting brackets: 2.8 kg (6.17 lb) With mounting brackets: 2.9 kg (6.37 lb) |
| Enclosure material | SGCC steel |
| Networking interface | (16) 10/100/1,000 RJ45 ports (2) 1G SFP Ethernet ports |
| Management interface | Ethernet In-Band |
| Total non-blocking throughput | 18 Gbps |
| Switching capacity | 36 Gbps |
| Forwarding rate | 26.78 Mpps |
| Power method | 100—240V AC/50-60 Hz, universal input |
| Power supply | AC/DC, internal, 60W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 18W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| SFP+ | Link/activity |
| Total available PoE | 42W |
| PoE interface | Ports 1-8- PoE/PoE+ (pins 1, 2+; 3, 6-) |
| Max. PoE wattage per port by PSE | PoE+- 32W |
| Voltage range PoE mode | 44—57V |
| Voltage range PoE+ mode | 50—57V |
