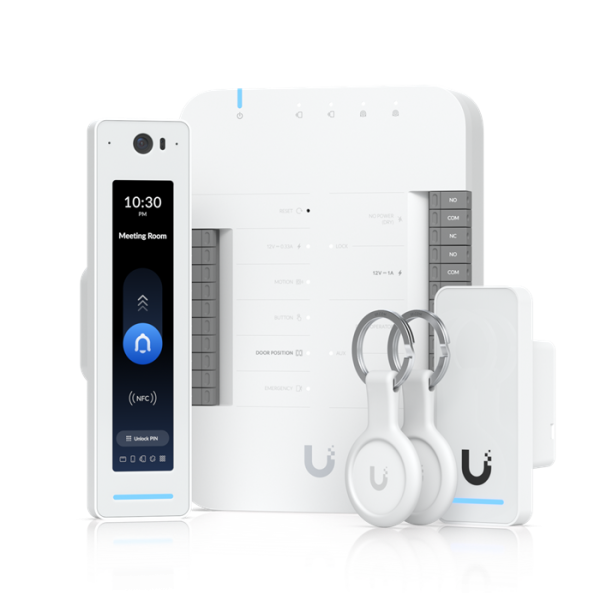

Ubiquiti UniFi Access Gen 2 Pro Starter Kit

Sku: UA-G2-SK-Pro

Brand: Ubiquiti

Category: Switches

$1,210.00

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Button: (1) Factory-reset, Enclosure material: Polycarbonate, glass, Mount material: Aluminum alloy, Mounting: Wall, gang box, Weatherproofing: IP55, Supported voltage range: 48V DC, Max. power consumption: 5W, 01 Year Limited Warranty, UA-G2-SK-Pro.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Ubiquiti | Model # UA-G2-SK-Pro



UniFi Access Starter Kit contains everything you need to set up the next generation, state-of-the-art access control system for your business. Compatible with most Electric Bolts/Strikes and Magnetic Locks, the UniFi Access Starter Kit is easily installed with minimal effort and offers the convenience of the UniFi Access Controller, which allows you to easily manage users, visitors, schedules, and access policies. The UniFi Access Starter kit is powered by native PoE technology.



Overview:

  • Button: (1) Factory-reset
  • Enclosure material: Polycarbonate, glass
  • Mount material: Aluminum alloy
  • Mounting: Wall, gang box
  • Weatherproofing: IP55
  • Supported voltage range: 48V DC
  • Max. power consumption: 5W



Manufacturer Warranty: 01 Year Limited Warranty

UA-Hub-Door
Mechanical:-
Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Weight 363 g (12.8 oz)
Enclosure material Polycarbonate
Mounting material Polycarbonate
Hardware:-
Networking interface (5) 10/100/1000 Base-T
Power method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU
Max. power consumption Without PoE output: 30W
With PoE output: 50W
PoE input 50V DC, 1A
PoE output PoE passthrough, (4) PoE, 50V DC, total 20W
Button (1) Factory-reset
LEDs System: white/blue
Output relays: white
Digital input Request to exit/request to enter/remote release/door position sensor
Dry output relay Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered output relay Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
Operating environment Indoor use only
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 5 to 95% noncondensing
UL 294 level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
UA-G2-Pro
Mechanical:-
Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Weight 136 g (4.8 oz)
Enclosure material Polycarbonate, glass
Mount material Aluminum alloy
Mounting Wall, gang box
Weatherproofing IP55
Hardware:-
Networking interface (1) 10/100/1,000 MbE RJ45 port
Connectivity BLE 4.2
NFC
Power method PoE
Supported voltage range 48V DC
Max. power consumption 6W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensor ToF sensor
Camera 4000 x 3000, 12 MP, 30 FPS
Microphone Yes
Speaker (1) 4 ohm, 1.5W
LEDs R/G/B/W
Flash
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature -10 to 45° C (14 to 113° F)
Operating humidity 5 to 90% noncondensing
UA-G2
Mechanical:-
Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight 82 g (2.9 oz)
Enclosure material Polycarbonate, glass
Mounting In wall, gang box
Weatherproofing IP55
Hardware:-
Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
Power method PoE
Supported voltage range 48V DC
Max. power consumption 5W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) 8 ohm, 0.7W
LEDs R/G/B/W
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature -30 to 45° C (-22 to 113° F)
Operating humidity 5 to 90% noncondensing
UA-Pocket
Mechanical:-
Dimensions 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight 16 g (0.56 oz)
Enclosure material Polycarbonate, stainless steel
Weatherproofing IP54
Hardware:-
NFC frequency 13.56 MHz
NFC technology ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol
Operating temperature -10 to 45° C (14 to 113° F)
Operating humidity 10 to 90% noncondensing
