Sku: UACC-LRE
Brand: Ubiquiti
Category: Network Accessories
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Enclosure material: UV stabilized polycarbonate, Mounting material: Stainless steel, Weatherproofing: IPX5, Networking interfaces: (2) GbE RJ45 ports, Power method: PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-), Max power consumption (excluding PoE out): 1.5W, Voltage range: 37 to 57VDC, ESD/EMP protection: Air/contact: ± 30kV, DC sparkover voltage: 90V at 100V/s, Max. impulse sparkover voltage: 700V at 1kV/µs.
We Accept
Manufacture # Ubiquiti | Model # UACC-LRE

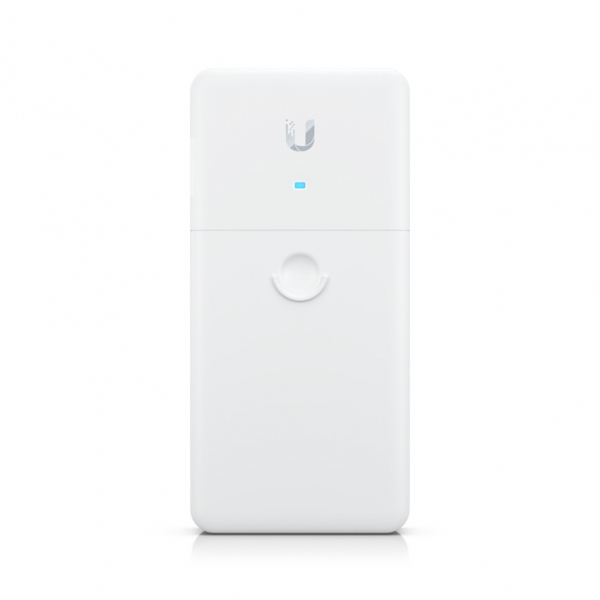

The Long-Range Indoor/Outdoor Repeater (UACC LRE) is Gigabit adapter that allows you to easily and inexpensively expand your Ethernet network’s range. With its (2) GbE RJ45 ports, the UACC LRE can receive PoE/PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40 to 80° C) to protect your deployment from weather and electrical damage. Supports up to 1 km link distances*.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Dimensions (HxWxD) | 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5") |
| Weight | 350 g (12.3 oz) |
| Enclosure material | UV stabilized polycarbonate |
| Mounting material | Stainless steel |
| Weatherproofing | IPX5 |
| Networking interfaces | (2) GbE RJ45 ports |
| Power method | PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-) |
| Max power consumption (excluding PoE out) | 1.5W |
| Voltage range | 37 to 57VDC |
| PoE interfaces | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
| ESD/EMP protection | Air/contact: ± 30kV |
| DC sparkover voltage | 90V at 100V/s |
| Max. impulse sparkover voltage | 700V at 1kV/µs |
| Discharge current | 10kA+ |
| Modes | Long-range indoor Outdoor ethernet repeater |
| Operating temperature | -40 to 80° C (-40 to 176° F) |
| Operating humidity | 10 - 95% non-condensing |
| Certifications | CE, FCC, IC |
| System | (1) Blue: power ON |
| Ethernet | (2) Green: 1 Gbps, Amber: 10/100 Mbps |
| PoE | (1) Amber: passthrough PoE out |
