Ubiquiti Edgeswitch Managed Poe+ Giga Switch 8 Port 150w (ES-8-150W-AU)

Name: Ubiquiti Edgeswitch Managed Poe+ Giga Switch 8 Port 150w ES-8-150W-AU
Brand: Ubiquiti
SKU: ES-8-150W-AU
Price: 374 AUD
Availability: InStock

SKU : ES-8-150W-AU

Brand : Ubiquiti

This product is either discontinued or we cannot get that from suppliers.

Ubiquiti ES-8-150W-AU, Non-Blocking Throughput 10 Gbps, Capacity 20 Gbps, Forwarding 14.88 Mpps, Includes PoE Output 150W, Excludes PoE Output 20W, Power supply AC/DC, Internal, 150W DC, Interface 10/100/1000 Mbps RJ45 Ethernet Ports, 1 Gbps SFP Ethernet Ports. The fanless EdgeSwitch® 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.

Ask a question about this product

Call Us

Estimated Shipping

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # ES-8-150W-AU

The fanless EdgeSwitch^® 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.

Features:

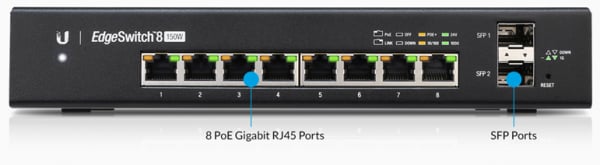

The compact EdgeSwitch ES-8-150W-AU features a versatile port configuration eight Gigabit Ethernet ports
That support PoE+ and two SFP ports for fiber connectivity
It can be placed on a desktop or mounted on a wall
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing
IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure
The EdgeSwitch provides fiber connectivity options for your growing networks
Two SFP ports provide uplinks of up to 1 Gbps.

Overview:

Total Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Includes PoE Output: 150W
Excludes PoE Output: 20W

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Dimensions	204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight	1.72 kg (3.79 lb) 1.8 kg (3.96 lb
Total Non-Blocking Throughput	10 Gbps
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Includes PoE Output	150W
Excludes PoE Output	20W
Power Method AC	100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
Power Method DC	42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input
Power Supply	AC/DC, Internal, 150W DC
LEDs Per Port RJ45 Data Ports	PoE, Speed/Link/Activity
LEDs Per Port SFP Data Ports	Speed/Link/Activity
Networking Interfaces	(8) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port, Ethernet In/Out Band
Certifications	CE, FCC, IC
Wallmount	Yes
ESD/EMP Protection	Air: ±24 kV, Contact: ±24 kV
Internal AC/DC @ 150W	-25 to 45° C (-13 to 113° F)
Internal AC/DC @ 100W	-25 to 55° C (-13 to 131° F)
External DC	-25 to 60° C (-13 to 140° F)
Operating Humidity	5 to 95% Noncondensing
Shock and Vibration	ETSI300-019-1.4 Standard
