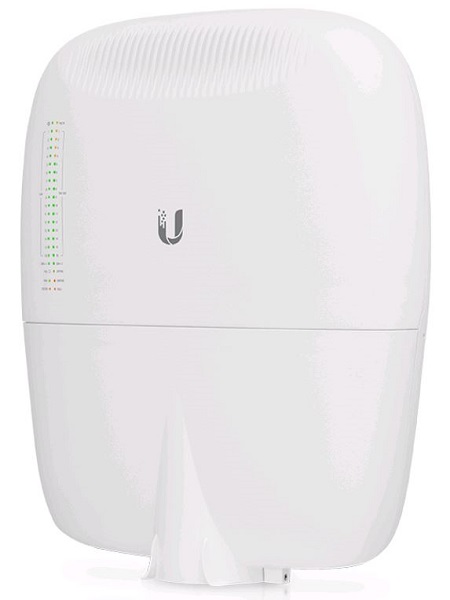

    Ubiquiti Edgepoint 16 Port Poe Outdoor Wisp Switch (EP-S16)

Ubiquiti Edgepoint 16 Port Poe Outdoor Wisp Switch (EP-S16)

SKU : EP-S16
Brand : Ubiquiti
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered
Ubiquiti EP-S16, Max. Power Consumption 40W (Excludes PoE Output), Power Input (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2), Power Supply Min. 54V / 0.8A (Excludes PoE Output Power), VDC Input 54V / 6A, Voltage +42 to +56VDC (-48V is NOT Supported), Ports (1) RJ45 Serial Port, (16) 10/100/1000 RJ45 Ports, (2) 1/10 Gbps SFP+ Ports.   Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.
Ask a question about this product
$767.00

Estimated Shipping

Pickup when available
Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Ubiquiti | Model # EP-S16



Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.


The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.



Features:

  • Ubiquiti EP-S16 16 RJ45 Ethernet ports and two SFP+ ports
  • Weatherproof Enclosure for Outdoor Use
  • Powerful Routing or Switching Features
  • Fiber Backhaul Capability
  • Intuitive User Interface



Overview:

  • Reset Button
  • CE, FCC, IC  Certifications



Manufacturer Warranty: 02 Years Limited Warranty



Technical Specifications

Dimensions
With Wall-Mount
326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight
With Wall-Mount
3.4 kg (7.50 lb)
3.8 kg (8.38 lb)
Max. Power Consumption 40W (Excludes PoE Output)
Power Input (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2)
(Self-Correcting Polarity Protection on DC Terminal Block Only,
Diode ORed Protection on All Power Inputs)
Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input 54V / 6A
Passive PoE Input (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 and 2
(Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.)
Passive PoE Output (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8)
Passive PoE, Ports 1 to 4
(12) 802.3af/at or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8)
Passive PoE, Ports 5 to 16
Power Monitoring (1) DC Terminal Block, Input Power
(2) RJ45, Ports 1 and 2, PoE Input or Output Power
(14) RJ45, Ports 3 to 16, PoE Output Power
Supported Voltage Range +42 to +56VDC (-48V is NOT Supported)
Button Reset
LEDs
System
PoE In 1 to 16
SFP

Power
PoE
Speed/Link/Activity, PoE
Speed/Link/Activity
Ports
Serial Console Port
Data Ports
(1) RJ45 Serial Port
(16) 10/100/1000 RJ45 Ports
(2) 1/10 Gbps SFP+ Ports
Pole/Wall Mount Yes
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
