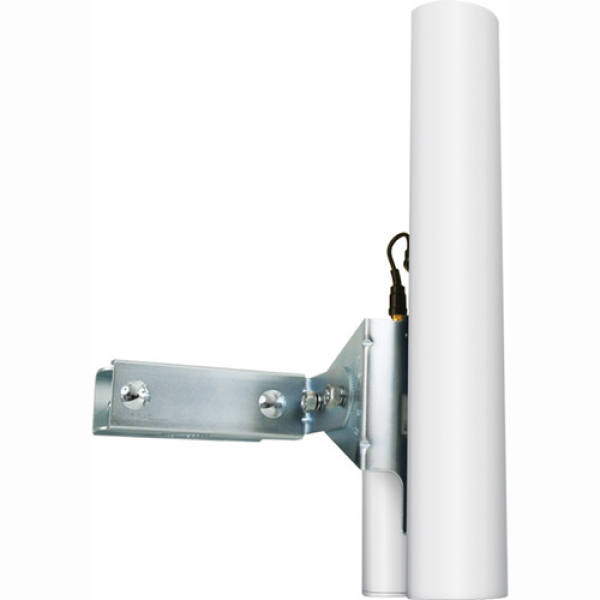

Ubiquiti AM-5G17-90 5GHz 17dBi 2x2 MIMO BaseStation Sector Antenna

Description

Manufacture # Ubiquiti | Model # AM-5G17-90

With the optional RocketM radio, the Ubiquiti airMAX Sector 17 dBi Antenna AM-5G17-90 allows you to modify your base station and gives networking versatility and ease. It has a gain of 17 dBi and runs at the 5 GHz band. It offers 2x2 MIMO capability and is compatible with airMAX technology, which sends and receives data at predetermined times by means of a Time Division Multiple Access protocol. To facilitate base station construction, a pole mount, RocketM bracket, and weatherproof RF jumpers are included with the antenna.


Features:

• 5 GHz Operating Frequency
• 17 dBi Gain
• For Outdoor Use
• Compatible with Rocket M BaseStations

Overview:

• Product Type: Antenna
• Color: White
• Frequency Range: 4.90 to 5.85 GHz
• Gain: 16.1 to 17.1 dBi
• Wind Survivability: 125 mph
• Polarization: Dual-Linear
• Cross-pol Isolation: 22 dB Min

Manufacturer Warranty: 01 Year Limited Warranty
