Manufacture # Ubiquiti | Model # PBE-5AC-ISO-Gen2

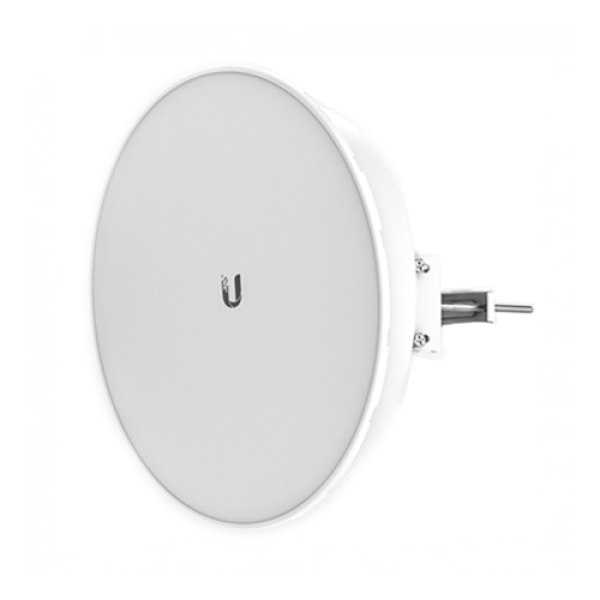

The airMAX PowerBeam AC 5 GHz ISO Bridge supports up to 450+ Mbps real TCP/IP throughput and features improved surge protection. It features a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO from nature's harshest elements. The integrated isolator design spatially filters out interference, so the PBE-5AC-ISO delivers improved noise immunity in co-location deployments.
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Mechanical :- | |
| Dimensions | 420 x 420 x 230 mm (16.5 x 16.5 x 9.1") |
| Weight | 2.2 kg (4.9 lbs) |
| Enclosure materials | UV-stabilized plastic, powder-coated SPCC |
| Mounting | Pole mount kit (Included) |
| Wind loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware :- | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Max. power consumption | 8.5W |
| Supported voltage range | 20—26V DC |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | Power, Ethernet, (4) signal strength |
| RoHS compliance | Yes |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 - 95% noncondensing |
| Certifications | CE, FCC, IC |
| System :- | |
| Gain | 25 dBi |
| Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Operating Frequency (MHz) :- | |
| Worldwide | 5150 - 5875 MHz |
| USA | |
| U-NII-1 | 5150 - 5250 MHz |
| U-NII-2A | 5250 - 5350 MHz |
| U-NII-2C | 5470 - 5725 MHz |
| U-NII-3 | 5725 - 5850 MHz |
| Management Radio (MHz) :- | |
| Worldwide | 2412 - 2472 MHz |
| USA | 2412 - 2462 MHz |
