Sku: NS-5AC
Brand: Ubiquiti
Category: Routers-Gateways
Shipping Information
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Networking interface: (2) 10/100/1000 MbE ports, Power supply: 24V, 0.5A Gigabit PoE supply (Included), Supported voltage range: 24V ±10%, Max. power consumption: 8.5W, Max. VSWR: 1.6:1, Warranty: 01 Year, NS-5AC.
100% Guarantee Safe Checkout
Description
Manufacture # Ubiquiti | Model # NS-5AC

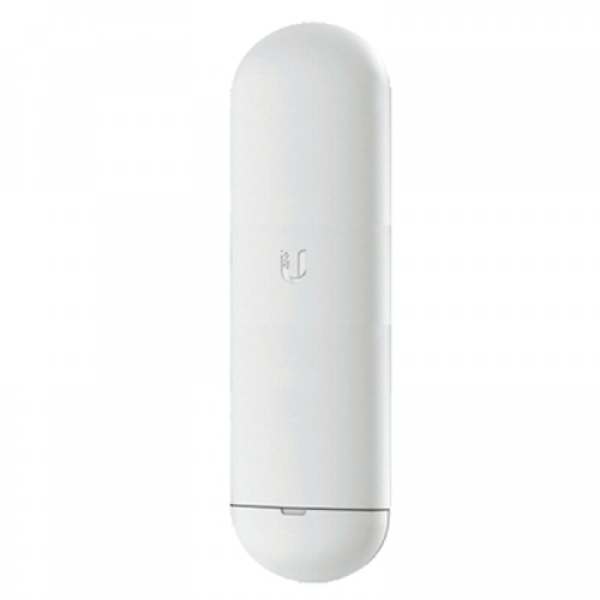

The indoor/outdoor NanoStation AC is a compact, high-performance CPE featuring airMAX AC technology and a dedicated Wi-Fi radio for management.
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
Mechanical :- | |
Dimensions | Without mount: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6") With mount: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2") |
Weight | 233 g (8.2 oz) |
Enclosure material | UV-resistant plastic |
Mounting | Pole and wall mounting kits (Included) |
Hardware :- | |
Networking interface | (2) 10/100/1000 MbE ports |
Power method | PoE Alternative A (Pairs 1, 2+; 3, 6 Return) 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Power supply | 24V, 0.5A Gigabit PoE supply (Included) |
Supported voltage range | 24V ±10% |
Max. power consumption | 8.5W |
ESD/EMP protection | Air/contact: ±24 kV |
LEDs | Power, Ethernet, (4) signal strength |
Operating temperature | -40 to 70° C (-40 to 158° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
System :- | |
Gain | 16 dBi |
Channel bandwidths | 10/20/30/40/50/60/80 MHz |
Cross-pol isolation | 20 dB min. |
Max. VSWR | 1.6:1 |
Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
Polarization | Dual linear |
Operating Frequency (MHz) :- | |
Worldwide | 5150-5875 MHz |
USA | |
U-NII-1 | 5150-5250 MHz |
U-NII-2A | 5250-5350 MHz |
U-NII-2C | 5240-5725 MHz |
U-NII-3 | 5725-5850 MHz |
Management Radio (MHz) :- | |
Worldwide | 2412 - 2472 MHz |
US/CA | 2412 - 2462 MHz |
