Manufacture: TP-Link | Model: VIGI C540S(4mm)

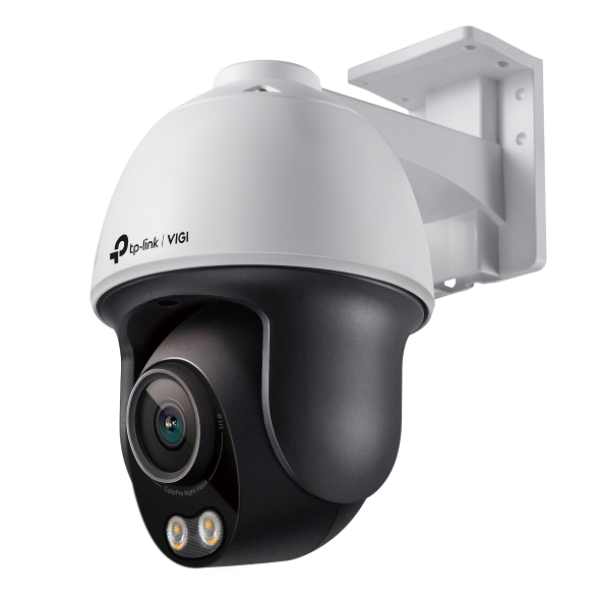

The VIGI camera with a 1/1.79” Progressive Scan CMOS image sensor is an advanced surveillance solution designed to provide high-definition video quality and reliable performance. This camera features an impressive minimum illumination of 0.0005 Lux, with white light support for enhanced nighttime visibility. The 4mm fixed focal lens offers a wide field of view, ensuring clear visibility across large areas. With advanced features such as multiple video compression options (H.265+/H.265/H.264+/H.264) and wide dynamic range, this camera is perfect for both day and night surveillance.
| Image Sensor | 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with White Light |
| Day/Night Mechanism | N/A |
| Day/Night Switch | Unified/Scheduled/Auto |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.0±5% |
| FOV | 4mm: Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127° |
| Lens Mount | M16*P 0.5 |
| DORI Distance | 4mm: Detect: 63 m (207 ft), Observe: 26 m (86 ft), Recognize: 13m (41 ft), Identify: 6 m (21 ft) |
| Pan/Tilt Range | Pan: 0° to 348°, Tilt: 0° to 105° |
| Pan/Tilt Speed | Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s; Tilt Speed: Configurable from 8° to 44°/s, Preset Speed: 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PTZ and lens status after power failure |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
| Angle Adjustment (Manual) Range | Pan: 0° to 348°, Tilt: 0° to 105° |
| IR LED | N/A |
| White LED | Quantity: 2, Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2688 x 1520 |
| Main Stream Frame Rate | 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Main Stream Resolution | 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream Frame Rate | 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Sub-Stream Resolution | 704x576, 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC |
| Wide Dynamic Range | 120dB (Note: When Face Recognition is enabled, only DWDR is supported) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
