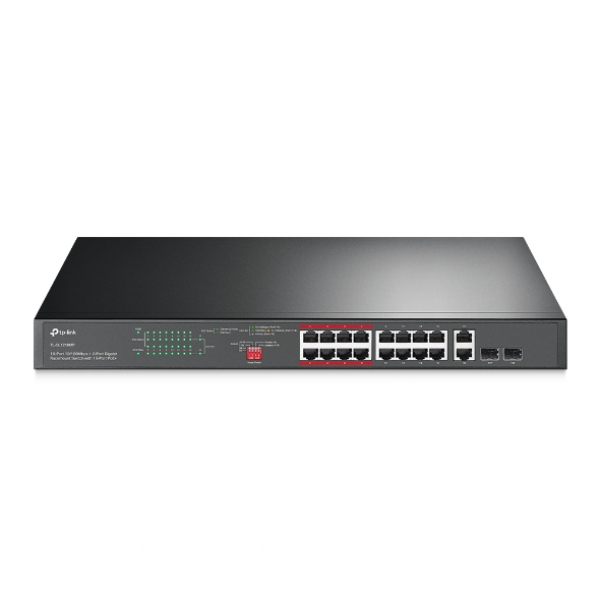

Tp-link Tp-link 16-port 10/100mbps + 2-port Gigabit Unmanaged Poe Switch TL-SL1218MP

Tp-link Tp-link 16-port 10/100mbps + 2-port Gigabit Unmanaged Poe Switch (TL-SL1218MP)

Sku: TL-SL1218MP

Brand: TP-Link

Category: Switches

$361.90

Shipping Information

Availability: In Stock

Ships in 1-2 days.

Pickup from Seven Hills in 1-2 days.

Shipping Calculator

Find

Tp-link TL-SL1218MP, Interface 16 PoE+ 10/100 Mbps RJ45 Ports, 2× 10/100/1000 Mbps RJ45 Ports, 2× Combo Gigabit SFP Slots, 2 Fans, Power 100–240V AC, 50/60 Hz, Capacity 7.2 Gbps, Forwarding 5.36 Mpps, MAC Address Table-8K, Jumbo Frame 10KB.

TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

We Accept

Description

Manufacture # Tp-Link | Model # TL-SL1218MP

TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

Features:

Tp-link Switch TL-SL1218MP 16 PoE+ 10/100Mbps RJ45 ports, 2 gigabit RJ45 ports and 2 combo Gigabit SFP slots
Up to 250M data and power transmission under extend mode specially designed for surveillance system
Priority mode for portal to guarantees the quality of sensitive applications like video monitor
High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports with Tp-link Switch TL-SL1218MP.
Easy to use, with no configuration and installation needed

Overview:

Compatible with IEEE 802.3at/af compliant devices
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control

Manufacturer Warranty: 01 Year Limited Warranty

Interface	• 16 PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 2× Combo Gigabit SFP Slots
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100–240V AC, 50/60 Hz
PoE+ Ports(RJ45)	• Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption	• 15.0 W (no PD connected) • 285.8 W (with 250 W PD connected)
Max Heat Dissipation	• 51.1 BTU/h (no PD connected) • 974.6 BTU/h (with 250 W PD connected)
Switching Capacity	7.2 Gbps
Packet Forwarding Rate	5.36 Mpps
MAC Address Table	8K
Jumbo Frame	10 KB
Advanced Features	• Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control
Transmission Method	Store-And-Forward
Certification	CE, FCC, RoHS
Package Contents	• TL-SL1218MP • Power Cable • Installation Guide • Two mounting brackets and the fittings
Environment	• Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
