Interface: 8x 10/100 Mbps 802.3af/at PoE+ Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port, External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A), Packet Forwarding Rate: 5.6544 Mpps, Mac Address Table: 2K, Jumbo Frame: 16 KB, Switching Capacity: 7.6 Gbps, Warranty: 05 Years, TL-SL1311P.
We Accept
Manufacture # TP-Link | Model # TL-SL1311P

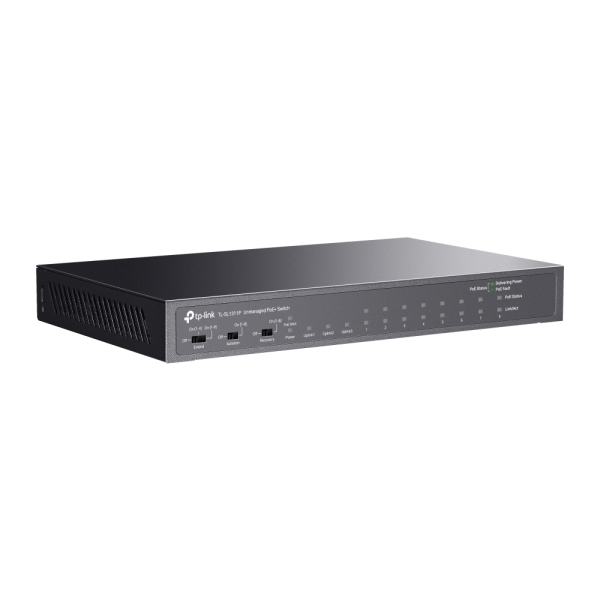

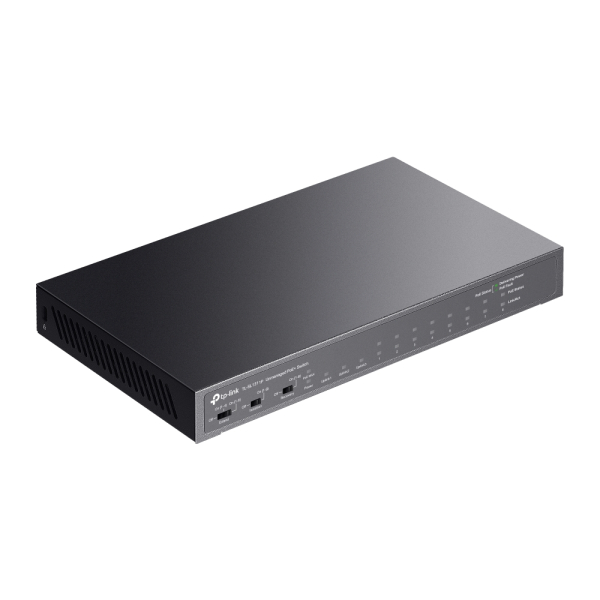

TL-SL1311P is an 8-Port 10/100Mbps + 3-port Gigabit Desktop Switch with 8-port PoE+. Just Plug-and-Play with PoE Transmission for Surveillance up to 250 m. The total 65 W PoE power budget for the 8x PoE+ ports open up a wide range of applications, such as surveillance for offices, dormitories, and small businesses.
Features:
Overview:
Manufacturer Warranty: 05 Years Limited Warranty
| Hardware Features :- | |

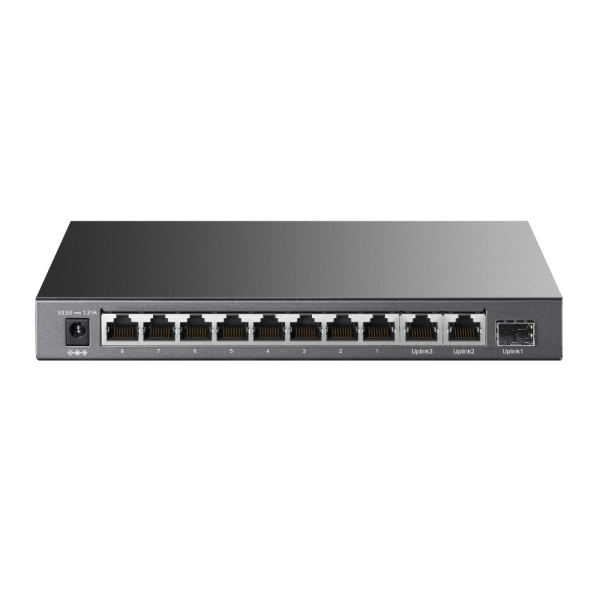

| Interface | 8x 10/100 Mbps 802.3af/at PoE+ Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 5.6544 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1–8 Power Supply: 65 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 7.6 Gbps |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max Power Consumption | 5.61 W (220 V/50 Hz. no PD connected) 77.32 W (110 V/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | 19.13 BTU/h (no PD connected) 263.7 BTU/h (with 65 W PD connected) |
| Software Features :- | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) Isolation Mode Button (Ports 1–8) PoE Auto Recovery Button (Ports 1–8) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| Others :- | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SL1311P Power Adapter Installation Guide |
| Environment | Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
