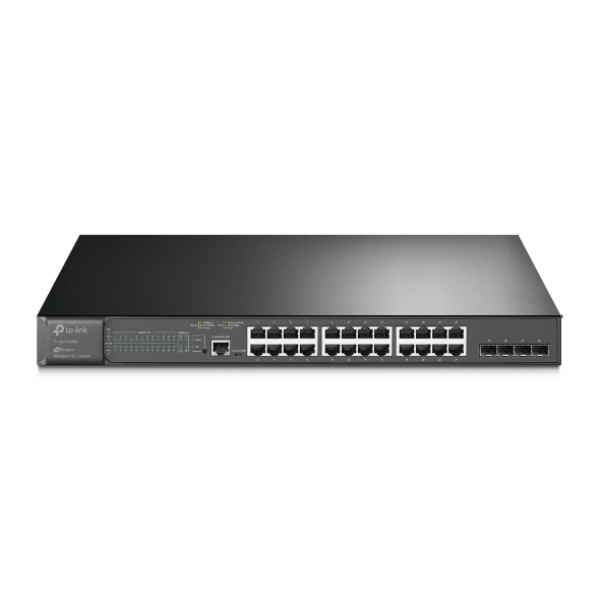

TP-Link SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+

Name: TP-Link SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
Brand: TP-Link
SKU: TL-SG3428MP
Price: 678 AUD
Availability: InStock

SKU : TL-SG3428MP

Brand : TP-Link

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse

Interface: • 24× 10/100/1000Mbps RJ45 Ports; • 4× Gigabit SFP Slots; • 1× RJ45 Console Port; • 1× Micro-USB Console Port, Fan Quantity: 2, Power Supply: 100-240 V AC~50/60 Hz, PoE Ports (RJ45): • Standard: 802.3at/af compliant; • PoE+ Ports: 24 Ports, up to 30 W per port; • PoE Power Budget: 384 W, Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm), Mounting: Rack Mountable, Switching Capacity: 56 Gbps, Packet Forwarding Rate: 41.66 Mpps, MAC Address Table: • V1: 8K; • V2 and above: 16K, Packet Buffer Memory: 4.1 Mbit, Jumbo Frame: 9 KB.

Ask a question about this product

$678.00

Buy Now

Estimated Shipping

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # TP-Link | Model # TL-SG3428MP

Features 24× 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Features:

384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W.
Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralised Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Overview:

Interface: • 24× 10/100/1000Mbps RJ45 Ports; • 4× Gigabit SFP Slots; • 1× RJ45 Console Port; • 1× Micro-USB Console Port
Fan Quantity: 2
Power Supply: 100-240 V AC~50/60 Hz
PoE Ports (RJ45): • Standard: 802.3at/af compliant; • PoE+ Ports: 24 Ports, up to 30 W per port; • PoE Power Budget: 384 W
Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting: Rack Mountable
Packet Forwarding Rate: 41.66 Mpps
MAC Address Table: • V1: 8K; • V2 and above: 16K
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB

Manufacturer Warranty: 05 Years Limited Warranty

Technical Specifications

Interface	• 24× 10/100/1000Mbps RJ45 Ports; • 4× Gigabit SFP Slots; • 1× RJ45 Console Port; • 1× Micro-USB Console Port
Fan Quantity	2
Power Supply	100-240 V AC~50/60 Hz
PoE Ports (RJ45)	• Standard: 802.3at/af compliant; • PoE+ Ports: 24 Ports, up to 30 W per port; • PoE Power Budget: 384 W
Dimensions ( W x D x H )	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	• V1: 463.8 W (110 V/60 Hz) (with 384 W PD connected); 31.0 W (110 V/60 Hz) (no PD connected) • V2: 465.8 W (110 V/60 Hz) (with 384 W PD connected); 34.4 W (110 V/60 Hz) (no PD connected) • V3: 442.1 W (220 V/50 Hz) (with 384 W PD connected) • V4: 460.8 W (110 V/60 Hz) (with 384 W PD connected) • V5: 456.4 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation	• V1: 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected); 105.78 BTU/h (110 V/60 Hz) (no PD connected) • V2: 1589.31 BTU/hr (110 V/60 Hz) (with 384 W PD connected); 117.38 BTU/hr (110 V/60 Hz) (no PD connected) • V3: 1508.67 BTU/hr (220 V/50 Hz) (with 384 W PD connected) • V4: 1572.48 BTU/hr (110 V/60 Hz) (with 384 W PD connected) • V5: 1557.47 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
MAC Address Table	• V1: 8K; • V2 and above: 16K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
Quality of Service	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
