Sku: TL-SG105PP-M2
Brand: TP-Link
Category: Switches
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
We Accept
Manufacture # TP-Link | Model # TL-SG105PP-M2

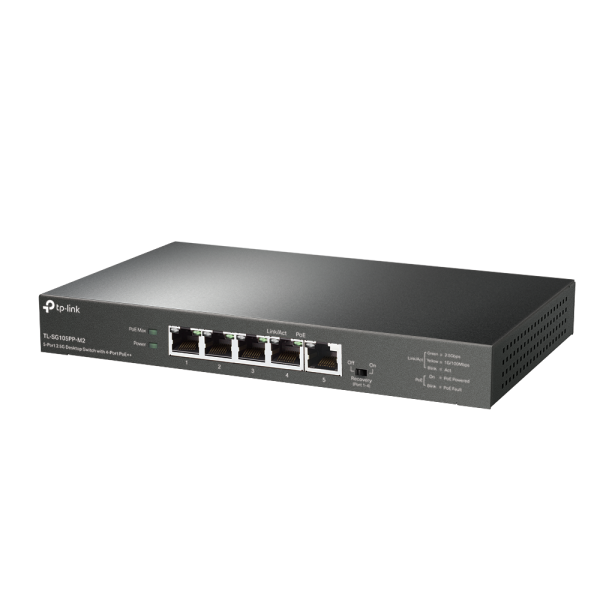

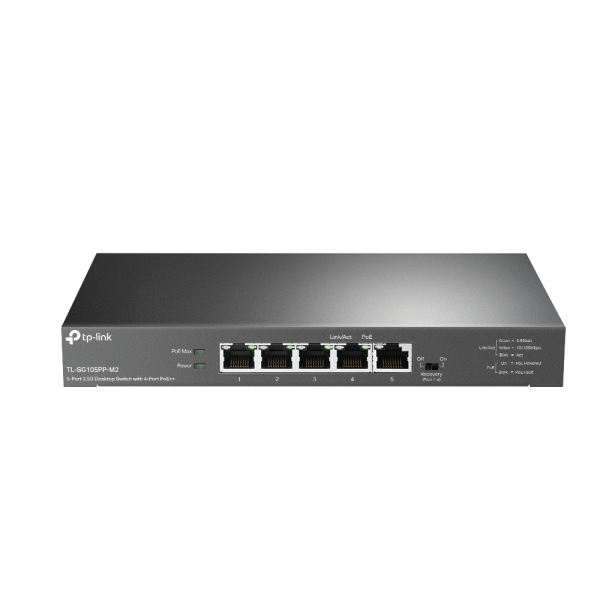

The TL-SG105PP-M2 is an unmanaged switch with 4 PoE (Power over Ethernet) ports and 5 Gigabit ports that doesn't need to be configured. All Powered Devices (PDs) at ports 1-4 that comply with IEEE 802.3af/at/bt can be automatically detected and powered by it. In this case, data and electricity are transferred over a single cable, enabling you to extend your network to locations without outlets or power lines and install devices like IP phones, APs, and cameras, among other things.In accordance with the kind of connected device, the 2.5G ports allow automated negotiation to 10Mbps/100Mbps/1Gbps/2.5Gbps. They also offer enough bandwidth to enable the maximum performance of 2.5G/Multi-Gigabit devices, such as NAS, personal workstations, 8K video streams, and 2.5G Wi-Fi 6 APs.
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
| Hardware Features :- | |
| Interface | 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Packet Forwarding Rate | 18.6 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at/bt type3 compliant PoE++ Ports: Ports 1–4 Power Supply: 123 W |
| Mac Address Table | 4K |
| Switching Capacity | 25 Gbps |
| Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
| Max Power Consumption | 7.57 W (220/50 Hz. no PD connected) 143.37 W (220/50 Hz. with 123 W PD connected) |
| Max Heat Dissipation | 25.81BTU/h (220 V/50 Hz with no PD connected) 488.89 BTU/h (220 V/50 Hz with 123W PD connected) |
| Software Features :- | |
| Advanced Features | Compatible With IEEE 802.3af/at/bt type3 Compliant PDs Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping PoE Auto Recovery (Ports 1-4) |
| Transfer Method | Store-And-Forward |
| Others :- | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG105PP-M2 Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
