Sku: PSM550-AC
Brand: TP-Link
Category: Network Accessories
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
We Accept
Manufacture # TP-Link | Model # PSM550-AC

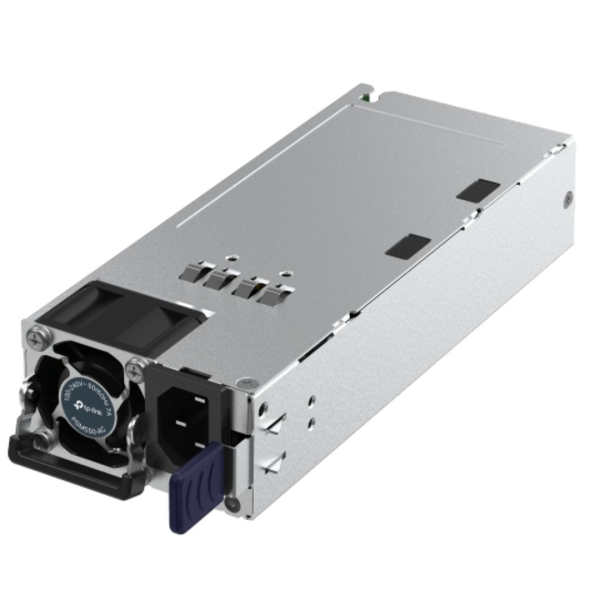

The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| Redundant Power Supply:- | |
| AC Power Input | 100-240V~ 50/60Hz 7A |
| DC Power Output | 12V main: 12 VDC/45 A (Maximum) 12Vsb: 12 VDC/2.1A (Maximum) |
| Surge Protection | ±4 kV |
| Dimensions | 185×73.5×40 mm |
| Maximum Power Output | 550W |
| Environment | Operating Temperature (sea level to 3000 m): 0?C–55?C (32?F to 131?F) Operating Temperature (sea level to 5000 m): 0?C–45?C (32?F to 113?F) Storage Temperature: -40?–70? (-40?~158?) Operating Humidity: 5%–90% RH, Non-condensing Storage Humidity: 5%–95% RH, Non-condensing |
